Showing Results for Keysight Technologies (Agilent HP) 8648C

30 results found for Agilent hp 8648c
Showing page 1 of about 2 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8648C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $4080 to $1436 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8648C (8648 Series) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 3.2 GHz
  • Freq. Resolution 1 mHz
  • Output Power <=2500 MHz: +13 to ¨C136 dBm; <=4000 MHz: +10 to ¨C136 dBm
  • Modulation AM,FM,Pulse,Phase
  • Status Discontinued
  • Supported until Mar-2012
  • Alternative N5181A MXG Analog Signal Generator

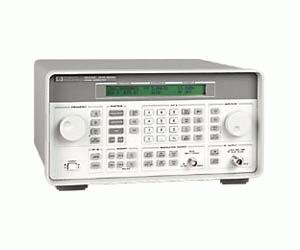

Agilent 8648C Synthesized RF Signal Generator is ideal for manufacturing high-volume products such as cordless telephones, pagers and two-way radios. Designed for semi-automated receiver test, and a variety of general purpose applications, the Agilent 8648C starts with the basic capabilities of the Agilent 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 3.2 GHz. to any test procedure.

  • Economical 3.2GHz synthesized signal generator
  • Superior level accuracy
  • Wide frequency and output power coverage
  • Optional pulse modulation and high power
  • Remote and memory interfaces for semi-automated testing
  • Simple, dependable operation
  • Minimum Output Power -136 dBm
  • Maximum Output Power 10 dBm
  • Power Resolution 0.1 dB
  • Output Accuracy 1.5 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -120 dBc/Hz
  • Maximum Single-Side-Band Noise -106 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Non-harmonics (noise) -48 dBc
  • Modulation AM,FM,Phase

Get Price Quotes

Keysight Technologies 8648C
  • $1,436
    • In Stock
