Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8648A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2995 to $889 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

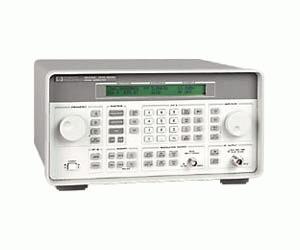

Keysight Technologies (Agilent HP) 8648A (8648 Series) Main Features and Specifications

Product Specs

  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 1 GHz
  • Freq. Resolution 1 mHz
  • Output Power +10 to –136 dBm
  • Modulation AM,FM,Phase
  • Status Discontinued
  • Supported until Mar-2012
  • Alternative N5181A MXG Analog Signal Generator

The Agilent 8648A is designed for semi-automated receiver test, and a variety of general purpose applications The Agilent 8648A starts with the basic capabilities of the Agilent HP 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 2 GHz. While economical, the Agilent 8648A is built to stringent quality standards, promoting reliability and measurement repeatability.

  • Economical 2.0 GHz synthesized signal generator
  • Superior level accuracy
  • Wide frequency and output power coverage
  • Optional pulse modulation and high power
  • Remote and memory interfaces for semi-automated testing
  • Simple, dependable operation Minimum
  • Output Power -136 dBm
  • Maximum Output Power 13 dBm
  • Power Resolution 0.1 dB
  • Output Accuracy 1 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -120 dBc/Hz
  • Maximum Single-Side-Band Noise -110 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Non-harmonics (noise) -54 dBc
  • Modulation AM,FM,Phase
