Showing Results for Keysight Technologies (Agilent HP) 8642A

11 results found for Agilent hp 8642a
Similar models:  Keysight Technologies (Agilent HP) 8642B
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8642A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1997 to $1495 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

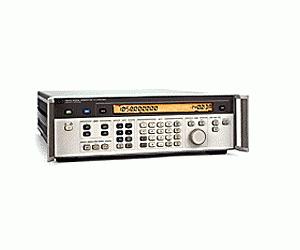

Keysight Technologies (Agilent HP) 8642A (Synthesized Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 1.1 GHz
  • Freq. Resolution 1Hz
  • Output Power -140 dBm to +20 dBm
  • Modulation AM,FM,Pulse,Phase
  • Status Discontinued
  • Supported until Apr-2007
  • Alternative E8663B Analog Signal Generator

See also

The Agilent 8642A synthesized signal generator is a high-performance, programmable signal generator for demanding out-of-channel RF receiver measurements and other stringent RF applications. It covers the frequency range from 100 kHz to 1057.5 MHz. This signal generator provides low SSB phase noise and spurious, high output level and level accuracy, and a full range of modulation types. The low-distortion internal modulation oscillator can be used to modulate the Agilent 8642A up to 100 kHz rates. This internal oscillator can also be used as an independent audio source with variable rates and levels.

  • < -134 dBc/Hz SSB phase noise at 20 kHz offsets at 1 GHz
  • -100 dBc nonharmonic spurious allows spurious rejection tests to be fully automated with confidence
  • ±1 dB absolute output level accuracy down to -127 dBm
  • Up to +20 dBm output level reduces the need for external amplifiers
  • AM, FM, phase and pulse modulation
  • Up to 100 kHz modulation rates with low-distortion internal oscillator
