Showing Results for Keysight Technologies (Agilent HP) 83732B

33 results found for Agilent hp 83732b
Showing page 1 of about 2 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 83732B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $13900 to $9997 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

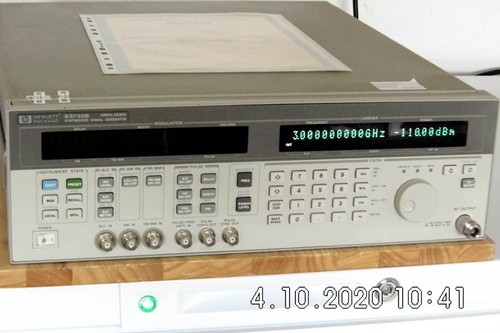

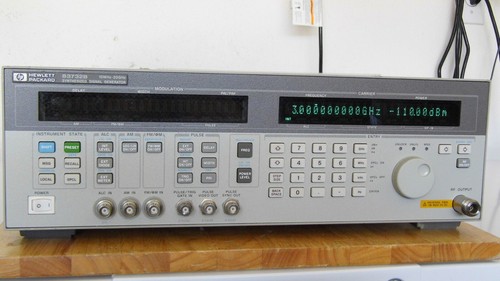

Keysight Technologies (Agilent HP) 83732B (Synthesized Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 10 MHz
  • Frequency Range Max. 20 GHz
  • Freq. Resolution 1 kHz
  • Output Power -4 dBm to +10 dBm
  • Modulation FM,Pulse,Scan,Phase
  • Status Discontinued
  • Supported until Apr-2008
  • Alternative E8257D-520 Frequency Range from 250 kHz to 20 GHz

The 83732B  provides plenty of output power (typically >+14 dBm), while spectral purity is maintained even at high power levels (typical output power at frequencies below 1 GHz is +20 dBm).

  • Pulse modulation for testing radar and EW receivers
  • Scan modulation for simulating a scanning antenna
  • Frequency modulation for simulating comms data
  • Phase modulation for satellite and radar applications
  • Minimum Frequency 10 MHz
  • Maximum Frequency 20 GHz
  • Frequency Resolution 1 kHz
  • Minimum Output Power -4 dBm
  • Maximum Output Power 10 dBm
  • Output Accuracy 2.5 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -115 dBc/Hz
  • Maximum Single-Side-Band Noise -65 dBc/Hz
  • Harmonics (noise) -55 dBc
  • Non-harmonics (noise) -60 dBc
  • Modulation FM, Pulse
