Keysight Technologies (Agilent HP) 3336C () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 33210A, 33220A

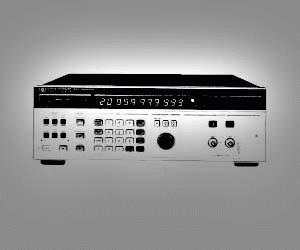

The HP 3336C is an accurate, stable, and spectrally pure sine wave source producing synthesized frequencies with 11 digits of resolution from 10 Hz to 20.999 999 999 MHz.

  • Frequency range: 10 Hz to 20.999 999 999 MHz
  • Frequency resolution: 1 µHz for frequencies <100 kHz, 1 MHz for frequencies ≥100 kHz
  • Amplitude range
    • 50 Ω output: -71.23 to +8.76 dBm
    • 75 Ω output: -72.99 to +7.00 dBm
  • Flatness: ±.1 dB
  • On carrier return loss
    • 50 Ω output: >30 dB or >25 dB, depending on frequency
    • 75 Ω output: >30 dB
  • Integrated phase noise: >-54 dB, for a 30 kHz band, centered on a 20 MHz carrier, excluding 1 Hz about the carrier
  • Spurious: -100 dBm
  • Maximum signal output during amplitude blanking: <-85 dBm
  • Phase offset
    • Range: ±719.9° with respect to arbitrary starting phase or assigned zero phase
    • Resolution: 0.1°
  • Frequency sweep
    • Flatness: ±.15 dB
    • Linear sweep time: .01 s to 99.99 s
    • Single log sweep time: 2 s to 99.99 s
    • Continuous log sweep time: .1 s to 99.99 s
    • Minimum log sweep width: 1 decade
  • Amplitude modulation
    • Modulation depth: 0 to 100%
    • Modulation frequency range: 50 Hz to 50 kHz
    • Envelope distortion: <-30 dBc to 80% modulation
    • Input impedance: 20 kΩ
  • Phase modulation
    • Range: 0 to ±850°
    • Modulation frequency range: dc to 5 kHz
    • Input impedance: 20 kΩ
  • HP-IB interface is standard
