Tabor Electronics WW2074 (Wonder Wave Series) Main Features and Specifications

Product Specs

  • Sampling Rate 250 MSa/sec
  • Record Length 1 M points (2 M optional)
  • Vertical Resolution [Bit] 16
  • Output Voltage Range 10 mVp-p to 10 Vp-p
  • Channels 4
  • Status -
  • Launch Date Sep-2006

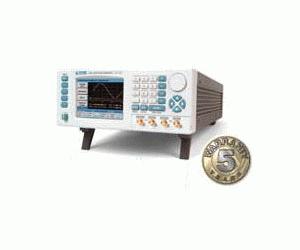

The Model 2074, is a four-channel universal waveform synthesizer. It is built in a small case size to save space and cost but without compromising bandwidth and signal integrity. The instrument outputs either standard or user-defined waveforms in the range of 100 mHz to 80 MHz. 16-bit DAC`s are used for building waveforms with excellent accuracy and resolution which are suitable for the finest test signals that are needed for today`s sensitive instruments. Using the latest technology, you can be assured that the features and capabilities of the Model 2074 will be useful for many years.

  • Four-channel 200 MS/s waveform generator
  • Sine and Square waves generated to 80MHz
  • 16 Bit amplitude resolution
  • 1M waveform memory, 2M waveform memory, optional
  • 10 Separate sequences link and loop segments in user-definable order
  • Four separate SYNC outputs for independent channel synchronization
  • 10 Vpp into 50W, double into open circuit
  • Multiple run modes including trigger, re-trigger and trigger delay
  • (n)PSK and (n)QAM modulation
  • High resolution 3.8” LCD, color display
  • Ethernet 10/100, USB 2.0 and GPIB interfaces
  • Multi-Instrument synchronization
  • ArbConnection software for easy waveform creation & control
