Fluke 281 (280 Series) Main Features and Specifications

Product Specs

  • Sampling Rate 40 MSa/sec
  • Record Length 64 k points per channel
  • Vertical Resolution [Bit] 12
  • Output Voltage Range 5 mV to 20 Vpp open circuit
  • Channels 1
  • Status -

See also

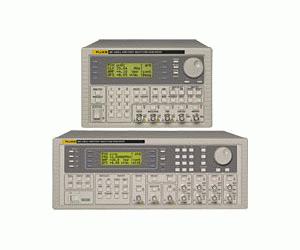

The 281, 282, and 284 Waveform Generators use Direct Digital Synthesis techniques as well as variable clock sampling technology to provide a fully featured programmable function and arbitrary waveform capability. The 281, 282 and 284 are 40 MS/s arbitrary waveforom generators with one, two, and four channels, respectively.

Waveform Manager Plus Software provides all the features needed for creation, manipulation and management of arbitrary waveforms within a single Windows-based program. Up to 100 user defined waveforms may be stored in the 256 K point nonvolatile RAM. Waveforms can be defined by front panel editing controls or by downloading of waveform data via RS-232 or GPIB.

  • 40 MS/s max. sampling speed
  • 16 MHz function generator
  • 10 MHz pulse generator
  • Pulse train pattern generator
  • Arbitrary waveforms of up to 65 k points
  • Powerful modulation capabilities
  • Built-in trigger generators
  • Waveform Manager Plus for Windows® software
  • Multiple standard waveforms recalled from internal memory
  • RS-232 and GPIB interfaces
