Showing Results for Keysight Technologies (Agilent HP) N6031A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N6031A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) N6031A (Arbitrary Waveform Generators) Main Features and Specifications

Product Specs

  • Sampling Rate 1.2 GSa/sec
  • Record Length 16 MS per channel
  • Vertical Resolution [Bit] 10
  • Output Voltage Range <-50 dBc (dynamic range)
  • Channels 2
  • Status Discontinued
  • Launch Date Mar-2005
  • Alternative M9331A

See also

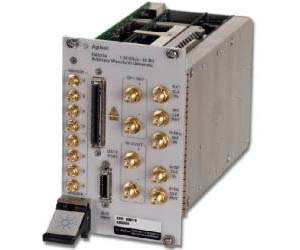

The Agilent N6031A arbitrary waveform generator delivers unprecedented performance for creation of complex ultra-wideband (UWB) waveforms. High sampling rate and high bit resolution provided in a single instrument enable designers to create ideal UWB waveforms for accurate system and subsystem testing. Each channel of the N6031A provides 500 MHz of modulation bandwidths and over 50 dBc of spurious free dynamic range. When the N6031A is combined with a wideband I/Q upconverter, modulation bandwidth of 1 GHz can be realized at microwave frequencies for authentic signal simulations for IF and RF subsystem test.

  • Dual channel operation
  • Ease of use
  • Scalable
  • Differential and single-ended outputs
  • Up to 16 MS waveform memory (optional)
  • Multiple module synchronization
  • Up to 125k definable waveform segments
  • Up to 16k unique definable sequences
  • Complete instrument control from MATLAB®
  • Compatible with CompactPCI and PXI mainframes
