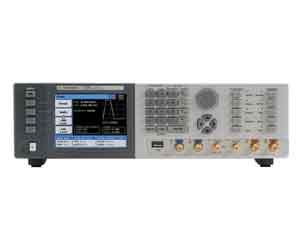

Keysight Technologies (Agilent HP) 81180B (4.6 GSa/s Arbitrary Waveform Generator) Main Features and Specifications

Product Specs

  • Sampling Rate 4.6 GSa/sec
  • Record Length Up to 64 MSa memory
  • Vertical Resolution [Bit] 12
  • Output Voltage Range -20 dBm - 10 dBm (AC-coupled), 100 mV - 1.2 V (Direct DAC single-ended)
  • Channels 2
  • Status -

The Agilent 81180B arbitrary waveform generator provides 4.6 GSa/s, 2 GHz IQ modulation bandwidth and 12-bit vertical resolution for applications where waveform resolution is an issue. It has three output paths, DC-coupled direct DAC output with 1 GHz bandwidth, DC-coupled 2 V amplifier with >600 MHz analog bandwidth, or AC-coupled 10 dBm amplifier with 1.5 GHz analog bandwidth.

  • High Bandwidth: 1 GHz modulation bandwidth / channel, 2 GHz I/Q modulation bandwidth and 1.5 GHz carrier frequency
  • Reliable and repeatable measurements through best dynamic range and low harmonic distortion. Markers do not reduce DAC resolution
  • 2 Vpp into 50 for many test cases and devices
  • Two or four channels. Combine 2 channels phase coherent or use them as two independent instruments in a single box. Two instruments can be synchronized to form a 4-channel system
  • Three software selectable amplifiers optimized for different applications requiring different signal characteristics
  • Advanced sequencing for best usage of 64 MSa memory for real-world signals
  • Dynamic Sequence control lets your application control the waveform – in real time
  • 10 pre-defined waveforms speed up your measurements

Model options:

  • 81180B-216: 2ch 4GSa/s Arbitrary Waveform Generator, 16M Sample Memory per Channel
  • 81180B-264: 2ch 4GSa/s Arbitrary Waveform Generator, 64M Sample Memory per Channel

Key features and specifications of the 81180B:

  • 10 MSa/s – 4.6 GSa/s, 12 bit Arbitrary Waveform and Function Generator
  • 2 GHz IQ modulation bandwidth
  • 2 channels (coupled and phase coherent / uncoupled)
  • Up to 64 MSa memory
  • Interchannel skew control from -3 ns to +3 ns with 10 ps resolution
  • Three software-selectable amplifiers optimized for
    • I/Q applications with 1 GHz, differential DC-coupled output
    • Maximum bandwidth and flatness for direct RF applications with AC output bandwidth to >1.5 GHz
    • Time domain applications with low overshoot and jitter
  • 8-bit external sequence / segment control
  • Advanced sequencing capabilities
  • Smart trigger alllows trigger hold-off and programmable pulse width
  • Trigger input is programmed to wait for waveform end or abort waveform and restart
  • Internal flash memory stores settings and waveforms
  • Two markers with adjustable width and levels, markers do not reduce DAC resolution
  • Waveform and instrument settings can be uploaded from disk-on-key
  • Integration in MATLAB, NI LabVIEW, and Agilent Benchlink waveform Builder Pro
  • Remote control through LAN, USB, and GPIB
