Here you will find a large selection of new and used Yokogawa AQ6375 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Yokogawa AQ6375 (AQ6370 Series - Long Wave) Main Features and Specifications

Product Specs

  • Form Factor Benchtop
  • Low end wavelength limit 1.2 µm
  • High End Wavelength Limit 2.4 µm
  • Wavelength Resolution 50 pm
  • Wavelength Accuracy ±0.05 nm
  • Dynamic Range 55 dB (Peak ±0.8 nm, 1523 nm, resolution 0.05 nm)dB
  • Status -
  • Launch Date Nov-2007

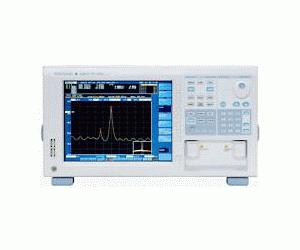

The AQ6375 is the first bench-top optical spectrum analyzer covering the long wavelength over 2 µm.
It is designed for researchers and engineers who have been struggling with inadequate test equipment to measure in these long wavelength ranges.
The AQ6375 achieves high speed measurements with high accuracy, resolution and sensitivity in a compact frame, even while providing full analysis features and a built-in calibrator; troublesome calibration steps and the development of external analysis software is no longer required.
Those features are indispensable to research, development, and manufacturing of optical devices in the wavelength range from telecom band to 2 µm.
No other test system can achieve this high performance and ease of use at the same time.

  • Long wavelength measurement capability
  • High wavelength accuracy & resolution
  • Wide dynamic range
  • High sensitivity
  • High speed measurement
  • USB for mouse, keyboard, and memory
  • Remote operation (GP-IB, RS-232, Ethernet)
