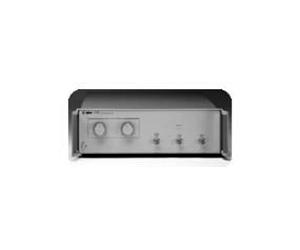

The Agilent 8509B lightwave polarization analyzer system is one of the first systems to offer calibrated polarization measurements of optical signals and components. These new capabilities are provided by innovations in hardware, software, and mathematics.

Hardware contributions include a four-diode detection scheme covering 1200 nm to 1600 nm. Single-wavelength, 1300 and 1550 nm Fabry-Perot lasers, and an automatic three-state polarization generator are provided within the Agilent 8509B. External single-wavelength or swept-wavelength sources can also be used.

• Two automated polarization-mode dispersion (PMD) measurements
• Fast, automatic measurements of polarization-dependent loss in optical components
• Maximum measurable differential group delay using Jones Matrix Eigenanalysis (JME) method
  • 0.01 nm wavelength step: 280 ps at 1310 nm, 400 ps at 1550 nm
  • 0.10 nm wavelength step: 28 ps at 1310 nm, 40 ps at 1550 nm
  • 1.0 nm wavelength step: 2.8 ps at 1310 nm, 4 ps at 1550 nm
  • 10.0 nm wavelength step: 0.28 ps at 1310 nm, 0.4 ps at 1550 nm
• PMD measurement uncertainty using the JME method
  • 0.10 nm wavelength step: ±310 fs uncertainty
  • 1.0 nm wavelength step: ±90 fs uncertainty
  • 10.0 nm wavelength step: ±60 fs uncertainty
• Minimum measurable PMD using the wavelength scanning method
  • Non-mode-coupled devices (most components): 0.040 ps
  • Highly mode-coupled devices (long fibers): 0.195 ps
• Receiver characteristics
  • Wavelength operating range: 1200 to 1600 nm
  • Input power operating range: +10 to -55 dBm
  • Input average power damage level: +16 dBm
  • Average power measurement uncertainty: ±15%
  • Degree of polarization measurement uncertainty: 1200 to 1280 nm is ±5.0%, 1280 to 1340 nm is ±2.0%, 1470 to 1580 nm is ±2.0%, 1580 to 1600 nm is ±3.0%
  • Poincare representation uncertainty: 1200 to 1340 nm is ±1.5°, 1470 to 1600 nm is ±1.5°
  • Measurement rate: >2000 per second
  • Display update rate: >2000 per second
• Source characteristics
  • Laser type: Fabry-Perot
  • Typical return loss: 17 dB
  • Typical average optical power output: 315 µW at 1310 nm, 220 µW at 1550 nm
  • Wavelength accuracy: ±20 nm
  • Spectral width (RMS): 5 nm
• External source input port characterestics
  • Wavelength operating range: 1200 to 1580 nm
  • Insertion loss: 6 dB
  • Return loss: 35 dB
• Polarization dependence
  • Polarization dependence wavelength operating range: 1280 to 1340 nm, 1470 to 1580 nm
  • Polarization dependence uncertainty: ±0.1 dB
• Fiber size and analog output range
  • Compatible fiber: 9/125 micron
  • Analog output range: ±10 V
