Tektronix ORR24 () Main Features and Specifications

Product Specs

  • Status Discontinued

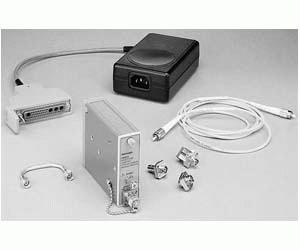

The Synchronous Data Hierarchy (SDH) and the Synchronous Optical NETwork (SONET) standards are the cornerstones of the high-speed digital telecommunications systems of today. The Tektronix ORR24 optical reference receiver provides an important interface for compliance testing of SDH/SONET optical transmission products or components.

The amplified design of the ORR24 converts the incoming optical light into a high gain, low noise electrical signal. This allows easy testing of optical designs as well as repeatable measurements. The ORR24 is DC coupled which is required for accurate extinction ratio measurements.

The controlled frequency design of the ORR24 optical reference receiver ensures that the measurements correctly represent the true transmitted signal for the purpose of pulse shape analysis or eye-pattern measurements. A certificate of calibration and a frequency response graph are supplied with the ORR24 for performance documentation. The compact SDxx form factor enables the ORR24 to conveniently plug into the Tektronix 11800 or CSA803 Series sampling oscilloscopes for complete compliance testing. An optional power supply is available for other instrument applications.

  • Supports SONET/SDH 2.488 Gb/s Data Rate
  • Reference Receiver Performance Compliant with ITU-T G.957
  • Built-in 4th Order Bessel-Thompson Frequency Response
  • 2.0 GHz Bandwidth for Analyzing Communication Eye-patterns or General Purpose Optical Signals
  • Amplified Design for Accurate and Repeatable Measurements
  • Plug-in Form Factor That Is Compatible with 11800/CSA803 Series Sampling Scopes
  • Wavelength Range: 1100 nm to 1650 nm
  • Rise Time: 205 ps
  • Conversion Gain (typical): ≥0.7 V/mW (1310 nm/1550 nm)
  • Maximum Input Optical Power
    • Maximum average linear response power: 100 µW (-10 dBm)
    • Maximum average nondestruct power: 5 mW (7 dBm)
    • Maximum peak nondestruct power: 10 mW (10 dBm)
  • Noise Equivalent Power: ≤15 pW per square root of Hz
  • Max Output Modulation Depth for Reference Receiver Performance:  ≤200mVp-p
  • Aberrations: ≤5%mVp-p
  • Optical Return Loss: ≥-30 dB
  • Output Termination Impedance: 50 Ω ±4%
  • Internal Fiber Size: 9 µm
  • Optional External Power Supply (016-1609-00) for Stand Alone Operation
