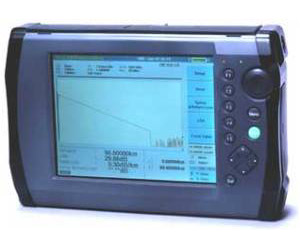

Anritsu MW9076C (Mini OTDR Series) Main Features and Specifications

Product Specs

  • Wavelengths [nm] 131 G
  • Min.Pulse Width 10 nsec
  • Max Pulse Width 20 µsec
  • Distance Range Min. 1 km
  • Distance Range Max. 400 km
  • Distance Resolution 1 m ± 3 X measurement distance
  • Dynamic Range 41.5dB
  • Status Discontinued

See also

The new MW9076 mini-OTDR series can perform a measurement three to five times faster than the well received, conventional MW9070B. Three and four-wavelength OTDRs are included among the new product lineup. The four-wavelength OTDR can measure the chromatic dispersion characteristics from one end of an optical fiber. Two types of color displays with high resolution (5cm) and many sampling points (50000 points) are available for indoor and outdoor use. The MW9076 series shows superior basic performance that enables a wide dynamic range and a short dead zone. It supports the construction and maintenance of the optical fiber cables. Moreover, using this OTDR, it is possible not only to quickly charge a lithium-ion battery but also to indicate the remaining battery charge.

  • 45 dB high dynamic range
  • Short 8 m dead zone
  • Simple measurement of chromatic dispersion from one end of an optical fiber
  • Measurement in 10 s (Full-Auto mode), 0.15 s real-time sweep
  • 5 cm high resolution, 50,000 sampling points
  • 8.4 inch TFT-LCD color display
