Showing Results for JDSU E4146QUAD

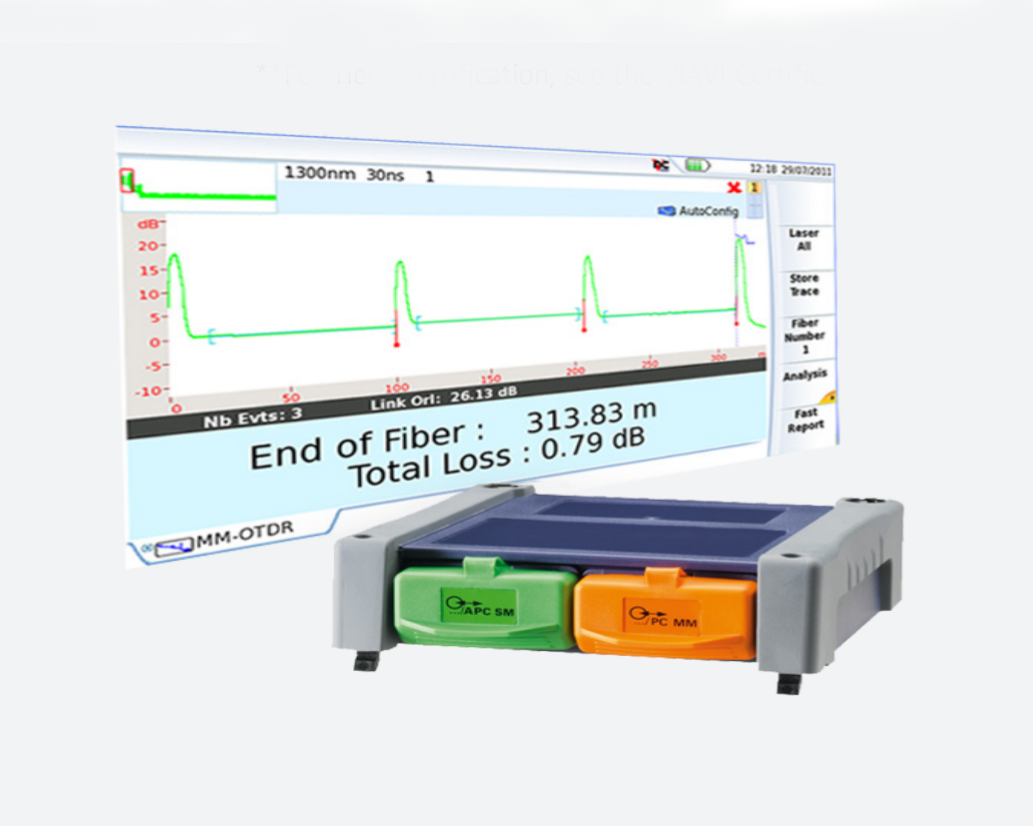

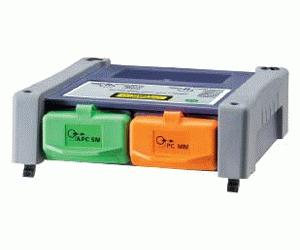

The Multimode (MM)/Single-mode (SM) Quad and Multimode modules are full featured optical time domain reflectometers (OTDRs) for the T-BERD/MTS-4000 platform.

The Quad OTDR is a powerful certification tool that gives a complete picture of single-mode and multimode fiber plants. Its user-friendly interface makes every technician a fiber expert with port quality check, automatic setting, loss-limit thresholds per event and fiber link, automative event analysis, and results management.

In addition, the Quad integrates a continuous wave (CW) light source and power meter to measure the optical power level and insertion loss, for both single-mode and multimode fibers.

Part of the modular T-BERD/MTS-4000 platform, the Quad provides users with unmatched scalability, reduces training time, and adds testing capabilities, such as Ethernet/IP physical media testing, copper cable certification, WiFi testing, VoIP emulation, IP video testing, visual fault location, and fiber connector inspection with automatic Pass/Fail analysis based on IEC standards.

• Dual Multimode or Quad (MM + SM) wavelengths
• E4146QUAD: Multimode/Singlemode 850/1300/1310/1550 nm OTDR
• E4123MM: Multimode 850/1300 nm OTDR
• Dynamic range of 27/25 dB (MM), 37/35 dB (SM)
• <1m event dead zones (EDZ) / 4 attenuation dead zones (ADZ)
• Integrated MM/SM loss test sets
• Automated bend detection
• Propagation delay measurement in MM
• Integrated USB ports for data storage, keyboard/mouse, and fiber inspection microscope
• Remote control via RJ45 Ethernet port
