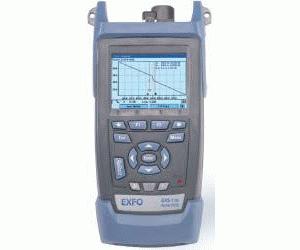

EXFO’s AXS-100 Handheld OTDR series covers the whole range of short-haul OTDR test applications. Featuring unrivaled event dead zones and first-class dynamic ranges, it includes four models to better suit your specific OTDR testing requirements.
The AXS-110 OTDR models help you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office’s fiber, access and FTTH network applications, where events are usually closely spaced.
The AXS-110 OTDR models let you test through high-port-count splitters—even 1 x 32 splitters—perfect for passive optical network (PON) testing.

Optimized for enterprise testing on both 50 and 62.5 µm multimode fiber, the AXS-110-MM offers the 850 and 1300 nm wavelengths, with respective dynamic ranges of 24 and 25 dB.

• FasTrace function: one-touch testing for top user-friendliness
• 8-hour power autonomy
• USB port (memory-stick compatible) for easy data transfer
• Large internal memory (up to 500 results)
• Transflective color display for viewing clear results under bright sunlight
• Superior automated analysis for a better, easier and faster diagnosis
• Automatic pass/fail analysis and macrobend locating
