Anritsu MU909014B/14B1/15B/15B1 () Main Features and Specifications

Product Specs

  • Wavelengths [nm] 13.1 M
  • Min.Pulse Width 5 nsec
  • Max Pulse Width 20 µsec
  • Distance Range Min. 500m
  • Distance Range Max. 250 km
  • Distance Resolution Sampling resolution is 5 cm minimum
  • Dynamic Range 37dB
  • Status -

See also

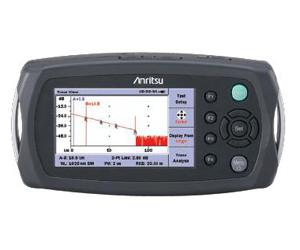

Introducing the first handheld OTDR that does not compromise performance – the new µOTDR from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A µOTDR has created a new class of test instruments. It features 5 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3 feet) and a dynamic range of up to 37dB – enough to test over 150km (90+ miles) or PON-based FTTX networks featuring up to a 1x64 split.  The MT9090A µOTDR also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.

  • High-end OTDR performance in a pocket-size package
  • Exclusive, integrated launch fiber provides accurate initial connector measurement without external devices
  • Excellent mid-range performance where it matters most
  • Full AUTO mode simplies operation and ensures proper set-up
  • Complete PON testing through splitters up to 1x64
  • High resolution and extremely short deadzones ensure thorough short fiber evaluation
  • Rugged, sealed design provides years of service in the most challenging environments
  • High resolution, widescreen color display that is easy to read indoors or out
  • Modular platform ensures maximum return on investment
  • Compact and lightweight design for maximum portability in the fieldomplete fiber maintenance tool including optical power meter and visible source “red light”
  • High performance without a high price

Specifications for the MU909014B/B1 and MU909015B/B1 µOTDR modules:

  • Center wavelength: 1310/1550±15 nm
  • Dynamic range
    • PW = 20 µsec: MU909014B/B1-056/066 is 32.5 dB/31 dB; MU909015B/B1-056/066 is 37 dB/36 dB
    • PW = 500 nsec: MU909014B/B1-056/066 is 24.5 dB/23 dB; MU909015B/B1-056/066 is 28 dB/26 dB
  • Fiber Type: 10 μm/125 μm SMF (ITU-T G.652)
  • Distance Range: 0.5, 1, 2.5, 5, 10, 25, 50, 75, 125, 250 km
  • Pulse Width: 5, 10, 20, 50, 100, 200, 500 ns, 1, 2, 5, 10, 20 μs
  • Dead Zone: Fresnel: <1 m, Backscatter: <5 m
  • Number of Sampling Points: <125,001 pts (Coarse: <6,251 pts, Medium: <25,001 pts, Fine: <125,001 pts)
  • Sampling Resolution: 5 cm (min)
  • Data Storage
    • Internal memory: 40 MB (<1,000 traces)
    • External (USB Memory): 1 GB (<30,000 traces)
  • IOR Setting: 1.3000 to 1.7000 (0.0001 steps)
  • Units: km, m, kft, ft, mi
  • Testing Modes: Full automatic, Manual, Real time, Optical Power Meter, Visible Fault Locator (Option), Video Inspection Prove (Option)
  • Fiber Event Analysis: Automatic, Displayed in table format based on user defined PASS/FAIL thresholds
  • Loss Measurement Modes: 2 point loss, Splice loss, dB/km Loss LSA, ORL, Event
  • Optical Power Meter
    • Wavelength: 1310/1490/1550/1625/1650 nm
    • Measurement range: –50 to –5 dBm
    • Maximum input: +10 dBm
  • Visible Fault Locator (for MU9014B1/15B1)
    • Connector: 2.5 mm universal
    • Wavelength: 650±15 nm (CW, +25°C)
    • Output power: 0±3 dBm (CW, +25°C)
    • Modulation: CW, 1 Hz
