Showing Results for Anritsu CMA5302

2 results found for Anritsu cma5302
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Anritsu CMA5302 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

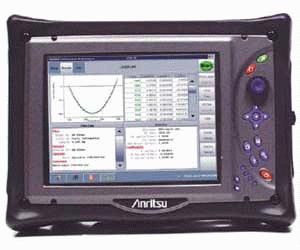

Anritsu CMA5302 (CMA5000 CD-OTDR) Main Features and Specifications

Product Specs

  • Wavelengths [nm] 131 G
  • Min.Pulse Width 5 nsec
  • Max Pulse Width 20 µsec
  • Distance Range Min. 5 km
  • Distance Range Max. 300 km
  • Distance Resolution 0.0001 km, 0.1 m, 1 ft, 0.0001 mi
  • Dynamic Range 37dB
  • Status -

The field portable CMA5000 OTDR/Chromatic Dispersion (OTDR/CD) measurement system is a dedicated module that combines the advanced capabilities of the Anritsu OTDR technology with the Anritsu experience in Chromatic Dispersion. The CMA5000 OTDR/CD measurement system gives installers and network providers a combined module that can be used as an OTDR and a chromatic dispersion measurement system, reducing testing times while increasing network performance. The CMA5000 OTDR/CD measurement system is based upon the industry accepted time-of-flight measurement method (FOTP-168) that can evaluate chromatic dispersion of individual fiber links. Utilizing a single fiber for the test and multiple wavelengths results in an inacrease in the accuracy of the measurement, as well as a reduction in the testing time. This translates into improved network performance and efficiency, resulting in increased revenue for the network provider.
