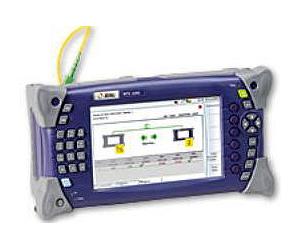

JDSU T-BERD/MTS-4000 FiberComplete () Main Features and Specifications

Product Specs

  • Wavelengths [nm] 131 G
  • Dynamic Range 42dB
  • Status -
  • Launch Date Feb-2011

FiberComplete™ is the first solution to automatically perform bi-directional Insertion Loss (IL), bi-directional Optical Return Loss (ORL using OCWR method), distance and OTDR or Fault Finder, using one fiber connection with one push-button operation.

This is the only bi-directional loss test set on the market that can characterize splices and connectors, and locate faults.

  • Up to 10 instruments in 1 unit
  • One connection, one-touch automated measurements
  • Real-time continuity check and product pairing using the fiber under test
  • Immediate troubleshooting with Fault Finder mode
  • Workflow optimization with Pass/Fail indications and direct report generation
  • Step by step wizard for initial IL/ORL test referencing
  • Fiber or Cable results management
  • Predefined/User-defined thresholds
  • Compatible with Metro-Access (MA) and Metro-PON (MP) OTDR
  • Comprehensive suite of PC software tools for post-processing of test results, including FiberTrace (OFS-100) and FiberCable (OFS-200)

North American packages:

  • TB4T-FCOMP2-MA: T-BERD 4000 package with 1310/1510 nm FiberComplete and integrated Metro-Access OTDR
    • 7-inch touch screen color display
    • Pass/Fail connector inspection software (probe available separately)
    • Broadband power meter
    • 37/35 dB OTDR at 1310/1550 nm
    • Bidirectional insertion and return loass and length
    • Continuous wave light source
    • SC/PC interchangeable adapter
    • Accessories: Non-reflective terminations for zero ORL referencing, SC mating sleeves, SC/PC to SC/APC 3 m SM jumper, SC/PC to SC/PC 3 m SM jumper, Glove carrying case
  • TB4T-FCOMP3-MP49: T-BERD 4000 package with 1310/1490/1510 nm FiberComplete and integrated Metro-PON OTDR
    • 7-inch touch screen color display
    • Pass/Fail connector inspection software (probe available separately)
    • Broadband power meter
    • 42/40/40 dB OTDR at 1310/1490/1550 nm
    • Bidirectional insertion and return loass and length
    • Continuous wave light source
    • SC/PC interchangeable adapter
    • Accessories: Non-reflective terminations for zero ORL referencing, SC mating sleeves, SC/PC to SC/APC 3 m SM jumper, SC/PC to SC/PC 3 m SM jumper, Glove carrying case

Packages for other regions:

  • MTS4T-FCOMP2-MA: MTS-4000 package with 1310/1510 nm FiberComplete and integrated Metro-Access OTDR
    • 7-inch touch screen color display
    • Pass/Fail connector inspection software (probe available separately)
    • Broadband power meter
    • 37/35 dB OTDR at 1310/1550 nm
    • Bidirectional insertion and return loass and length
    • Continuous wave light source
    • FC/PC interchangeable adapter
    • Accessories: Non-reflective terminations for zero ORL referencing, FC mating sleeves, FC/PC to FC/APC 3 m SM jumper, FC/PC to FC/PC 3 m SM jumper, Glove carrying case
  • MTS4T-FCOMP3-MP49: MTS-4000 package with 1310/1490/1510 nm FiberComplete and integrated Metro-PON OTDR
    • 7-inch touch screen color display
    • Pass/Fail connector inspection software (probe available separately)
    • Broadband power meter
    • 42/40/40 dB OTDR at 1310/1490/1550 nm
    • Bidirectional insertion and return loass and length
    • Continuous wave light source
    • FC/PC interchangeable adapter
    • Accessories: Non-reflective terminations for zero ORL referencing, FC mating sleeves, FC/PC to FC/APC 3 m SM jumper, FC/PC to FC/PC 3 m SM jumper, Glove carrying case
