Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 85025B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1950 to $1122 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 85025B () Main Features and Specifications

Product Specs

  • Status -

See also

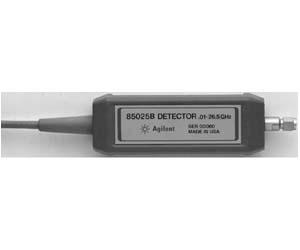

The Agilent 85025B detector is designed specifically for operation with the Agilent 8757D scalar network analyzer and is not compatible with the 8756 or the 8755. The 85025B detects either a modulated (ac) or an unmodulated (dc) microwave signal.

  • Dynamic range
    • AC mode: +16 to -55 dBm
    • DC mode: +16 to -50 dBm
  • Nominal impedance: 50 Ω
  • Maximum input power: +20 dBm (100 mW), ±10 VDC
  • Return loss
    • 10 MHz to 40 MHz: 10 dB
    • 40 MHz to 4 GHz: 20 dB
    • 4 GHz to 18 GHz: 17 dB
    • 18 GHz to 26.5 GHz: 12 dB
  • Frequency response
    • 10 MHz to 40 MHz: +0.25 dB/-0.75 dB
    • 40 MHz to 18 GHz: ±0.5 dB
