Showing Results for Keysight Technologies (Agilent HP) 8473C

5 results found for Agilent hp 8473c
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8473C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8473C () Main Features and Specifications

Product Specs

  • Status -

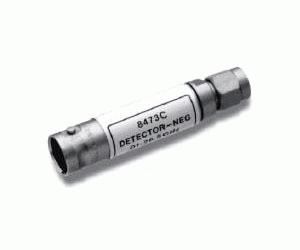

The Agilent 8473C 26.5 GHz low-barrier Schottky diode detector has been widely used for many years in a variety of applications including leveling and power sensing . It offers good performance and ruggedness. Matched pairs (Option 001) offer very good detector tracking.

  • Frequency range: 0.01 to 26.5 GHz
  • Frequency response: ±0.3 dB to 12.4 GHz, ±0.6 dB to 20 GHz, ±1.5 dB from a -3.3 dB linear slope starting at 20 GHz to 26.5 GHz
  • Maximum SWR: 1.2 to 4 GHz, 1.5 to 18 GHz, 2.2 to 26.5 GHz
  • Low-level sensitivity: >0.5 mV/uW to 18 GHz, >0.18 mV/uW to 26.5 GHz
  • Maximum operating input power: 200 mW
  • Typical short-term maximum input power (<1 minute): 1 W
  • Noise: <50 uV
  • Output polarity: negative
  • Input connector: 3.5 mm male
