Keysight Technologies (Agilent HP) 355E () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 8494G Programmable Attenuator, 4 GHz, 11 dB, 1 dB steps

See also

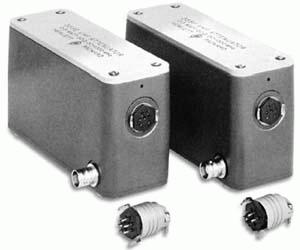

The Agilent 355E programmable step attenuator provides precision step attenuation in 1 dB steps from 0 to 12 dB. Attenuator sections are inserted and removed by cam-actuated microswitches which keep lead lengths short. This design minimizes stray capacitances and inductances, and keeps phase shift to a minimum. The Agilent 355E is a compact and rugged unit in which the component parts are rigidly positioned and well-shielded so that neither stray pickup nor signal leakage is a problem. It may be connected with the 355F in series to provide precision attenuation in 1 dB steps from 0 to 132 dB. Either terminal may be connected as input or output. Remote programming with rapid switching is simple via a 7-pin connector .

  • Broad frequency coverage - Range: dc to 1 GHz
  • Precision attenuation - Range: 0 to 12 dB, 1 dB steps
  • Overall accuracy: ±0.1 dB @ 1 kHz; ±0.25 dB, DC to 500 MHz; ±0.35 dB, DC to 1000 MHz
  • Insertion loss at 0 dB: 0.2 dB + 2.3 dB/GHz
  • Low SWR and negligible leakage - Maximum SWR: 1.2 to 250 MHz, 1.3 to 500 MHz, 1.5 to 1 GHz
  • Impedance: 50 ohms nominal
  • Internal power dissipation: 0.5 W average, 350 V peak
  • Repeatability life: 0.03 dB maximum, 0.5 million cycles per section
  • Maximum RF input power: 0.5 W (average), 350 W (peak)
  • Connector type: BNC female
  • Saves space, volume less than 30 cubic inches
  • Simple programming - Connector: 7-pin
