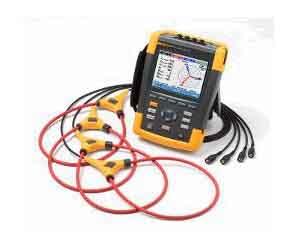

Fluke 435-II (Fluke 430 Series II) Main Features and Specifications

Product Specs

  • Input Channels 4 (3 phase + neutral) dc-coupled
  • Instrument Type Handheld
  • Interfaces Screen,Software,PC card,USB
  • Operation Modes Power quality analyzer, Energy analyzer, Scope, Energy loss calculator, Inverter efficiency, Meter, Trend recorder, Logger, Bar graph, Event capture, Power wave function, Mains signaling
  • Measurements Vrms, Vpk, VCF, Vrms1/2, Vfund, Amp (ac+dc), Apk, ACF, Amps1/2, Afund, Watts (VA, var), PF, kWh, Energy loss, Harmonics, Unbalance, Monitor, Inrush, Dips & Swells, Flicker, Transients
  • Status -
  • Launch Date Jan-2012

See also

The new 430 Series II Power Quality and Energy Analyzers offer the best in power quality analysis and introduce, for the first time ever, the ability to monetarily quantify energy losses.
The new Fluke 434, 435 and 437 Series II models help locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems.
Additionally, the Fluke-patented energy loss algorithm, Unified Power Measurement, measures and quantifies energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy waste within a system.

  • Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses
  • Troubleshoot real-time: Analyze the trends using the cursors and zoom tools
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View graphs and generate reports: With included analysis software
  • Battery life: Seven hours operating time per charge on Li-ion battery pack

435-II specifications:

  • Vrms (ac+dc): 1 V to 1000 V phase to neutral
  • Vpk: 1 Vpk to 1400 Vpk
  • Voltage crest factor: 1.0 > 2.8
  • Vrms½: 1 V to 1000 V phase to neutral
  • Amps (ac + dc)
    • with i430-Flex 1x: 5 A to 6000 A
    • with i430-Flex 10x: 0.5 A to 600 A
    • with 1 mV/A 1x: 5 A to 2000 A
    • with 1 mV/A 10x: 0.5 A to 200 A, ac only
  • Apk
    • with i430-Flex: 8400 Apk
    • with 1mV/A: 5500 Apk
  • A crest factor: 1 to 10
  • Amps½
    • with i430-Flex 1x: 5 A to 6000 A
    • with i430-Flex 10x: 0.5 A to 600 A
    • with 1 mV/A 1x: 5 A to 2000 A
    • with 1 mV/A 10x: 0.5 A to 200 A, ac only
  • Afund
    • with i430-Flex 1x: 5 A to 6000 A
    • with i430-Flex 10x: 0.5 A to 600 A
    • with 1 mV/A 1x: 5 A to 2000 A
    • with 1 mV/A 10x: 0.5 A to 200 A, ac only
  • Hz
    • @ 50 Hz nominal: 42.50 Hz to 57.50 Hz
    • @ 60 Hz nominal: 51.00 Hz to 69.00 Hz
  • Watts (VA, var)
    • with i430-Flex: maximum 6000 MW
    • with 1 mV/A: maximum 2000 MW
  • Power factor (Cos j/DPF): 0 to 1
  • kWh (kVAh, kvarh), and energy loss: Depends on clamp scaling and V nominal
