Dranetz BMI PowerXplorer PX5 400 (PowerXplorer) Main Features and Specifications

Product Specs

  • Input Channels 8 (4 voltage, 4 current)
  • Instrument Type Handheld
  • Interfaces RS-232,Screen
  • Operation Modes power quality monitor, data logger, scope, event logger
  • Measurements ACVrms, DCV, ACArms, DCA, W, VA, VAR, TPF, DPF, Demand, Energy, Harmonics, Frequency, crest factor, K factor, transformer derating factor, telephone interference factor, unbalance
  • Status -

See also

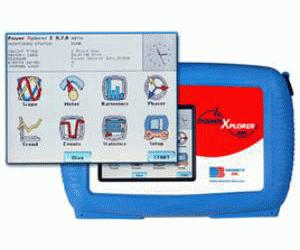

The PowerXplorer integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The unique measurement capabilities of the PowerXplorer include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize non-sinusoidal and unbalanced systems.

  • Tests at 50/60 and 400Hz
  • Meets MIL Standard 1399 Testing
  • Eight channels, 4 voltage & 4 current
  • Intuitive color touch screen
  • Light weight – About 4 pounds, 2 kg – with rugged rubber boot
  • AC/DC applications
  • Samples at 256 samples/cycle
  • Independent voltage & current triggering, cross triggering
  • High-speed sampling and data capture (1 microsecond/channel)
  • Oscilloscope-like high speed transient detection (Dranetz 658-like and BMI-8800 like)
  • Detailed event characterization of RMS variations and transients
  • THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd at 50/60 Hz
  • Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
  • Remote communications—RS-232, Ethernet or USB
  • Battery or AC mode
  • Built in UPS battery with external charger
  • Expanded memory up to 128 MB
  • Available languages – English, Spanish, French, German, Italian, Swedish, Chinese, Finnish
  • DRAN-VIEW enabled (Windows NT, 98, ME, 2000, XP)
  • Measures flicker according to IEC 61000-4-15
  • Complies with IEEE 1159, IEC 61000-4-30 Class A and EN50160
  • Instrument available in 400 Hz measurement version
