Dranetz BMI PowerVisa 440 () Main Features and Specifications

Product Specs

  • Input Channels 8 (4 voltage, 4 current)
  • Instrument Type Handheld
  • Interfaces RS-232,Screen
  • Operation Modes power quality monitor, data logger, scope, event logger, voltage fault recorder, load/energy balancer
  • Measurements ACVrms, DCV, ACArms, DCA, W, VA, VAR, TPF, DPF, Demand, Energy, Harmonics, Frequency, crest factor, K factor, transformer derating factor, telephone interference factor, unbalance
  • Status -

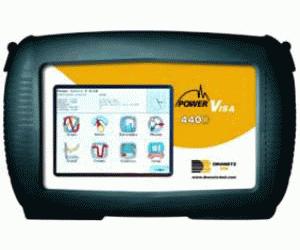

Equipped with 8 independent channels, the 3-phase PowerVisa is the only advanced power monitoring instrument to incorporate a color touch screen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing.

  • Eight channels, 4 voltage & 4 current
  • Intuitive color touch screen
  • Light weight – Less than 4 pounds, 2 kg – with rugged rubber boot
  • AC/DC applications
  • Automated setups for out-of-the-box instrument readiness
  • Unique report card annunciator that instantly characterizes events
  • Samples at 256 samples/cycle
  • Independent voltage & current triggering, cross triggering
  • Capture of low-medium frequency transients
  • THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
  • Remote communications—RS-232, Ethernet or USB
  • Battery or AC mode
  • Built in UPS battery with external charger
  • Expanded memory up to 128 MB
  • DRAN-VIEW enabled (Windows NT, 98, ME, 2000, XP)
  • Measures wide range of parameters, including crest factor, K factor, transformer derating factor and telephone interference factor
  • Complies with IEEE 1159, IEC 61000-4-30 Class A and EN50160
