Showing Results for Rohde & Schwarz FSQ3

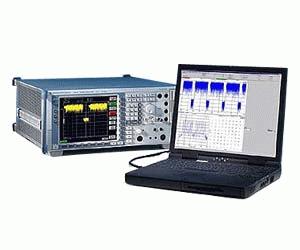

The Signal Analyzer R&S FSQ combines two instruments in one. It offers signal analysis at a demodulation bandwidth of up to 120 MHz with the dynamic range of a high-end spectrum analyzer.

• Frequency range: 20 Hz to 3.6 GHz
• Dynamic range of a high- end spectrum analysator
  • TOI + 25 dBm, typ.
  • 1 dB compression +13 dBm, typ.
  • 84 dB ACLR/3GPP with noise correction
• 28 MHz demodulation bandwidth (optional 120 MHz)
• 16 Msample I and Q memory
  • Application firmware for digital demodulation measurement
  • Bluetooth
  • GSM/EDGE
  • 3 GPP WCDMA, HSDPA, TD-SCDMA
  • CDMA2000, 1xEV-DV, 1xEV-DO
  • WLAN 802.11a/b/g/j
  • General purpose vector signal analysis
• Other data:
  • Phase-noise typ. -123 dBc/Hz @ 10 kHz offset, CF 640 MHz
  • Phase-noise typ - 160 dBc/Hz @ 10 MHz offset, CF 640 MHz
  • TOI typ. ±25 dBm
  • 1-dB-compression point + 13 dBm
  • 3GPP ACLR 77 dB, 84 dB with noise correction
  • ACLR for 4-carrier scenario: 77 dB with noise correction
  • 0.3 dB total level uncertainty up to 3.6 GHz
  • <0.1 dB linearity error down to -70 dB
  • 2.5ms sweep time in frequency domain
  • 1 μs sweep time in time domain
  • up to 70 remote measurements/s via GPIB
  • up to 80 manual measurements/s (screen update)
