Showing Results for Keysight Technologies (Agilent HP) E8362C

40 results found for Agilent hp e8362c
Showing page 1 of about 2 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) E8362C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $57600 to $39995 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

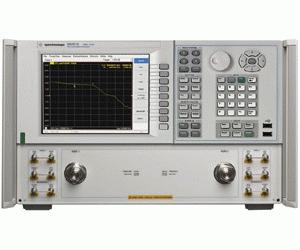

Keysight Technologies (Agilent HP) E8362C (Microwave PNA Series) Main Features and Specifications

Product Specs

  • Instrument Type Vector, S-Parameter
  • Low end frequency limit 10 MHz
  • High End Frequency Limit 20 GHz
  • Output Power Range At 45 MHz to 10 GHz: -25 to +5 dBm. With option: -87 to +3 dBm
  • Input Noise Level Test port input noise floor varies with bandwidth and option: <-120 to <-57 dBm
  • Status -

General-purpose network analysis with optional software and/or hardware to customize for your application - such as multiport and pulsed-RF.

  • Improved graphical user interface
  • 123 dB dynamic range and <0.006 dB trace noise
  • <26 usec/point measurement speed, 32 channels, 20,001 points
  • TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
  • Mixer conversion loss, return loss, isolation, and absolute group delay
  • Amplifier gain compression, harmonic, IMD, and pulsed-RF
  • Unlimited number of display windows, which can be resized and re-arranged
  • Up to 24 active traces and 24 memory traces per window
  • Formats: Log or linear magnitude, SWR, phase, group delay, real and imaginary, Smith chart, polar
  • Ten independent markers per trace including reference marker for delta marker operation, as well as log or linear magnitude, phase, real, imaginary, SWR, delay, R + jX, and G + jB formats
  • Define test limit lines that appear on the display for go/no go testing
  • Linear, CW (single frequency), power or segment sweep
  • Options: Time-domain, configurable test set, frequency-offset, embedded LO measurements, extended power range and bias-tees, IF access, pulsed-RF measurement capability, 4-port and N-port measurements, and vector- and scalar- calibrated converter measurements
  • Embedded documentation in five languages
  • GPIB/SICL/LAN/DCOM interfaces
