Showing Results for Keysight Technologies (Agilent HP) 1652B

6 results found for Agilent hp 1652b
Similar models:  Keysight Technologies (Agilent HP) 1653B
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 1652B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $940 to $450 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

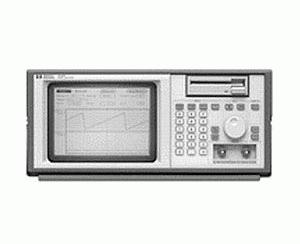

Keysight Technologies (Agilent HP) 1652B (Portable Logic Analyzers) Main Features and Specifications

Product Specs

  • Instrument Type Benchtop
  • Max. Channels Number 80
  • Max. State Speed 35 MHz
  • Max. Timing Speed 100 MHz
  • Memory Depth 1KB/ch
  • Status Discontinued
  • Supported until Sep-1999
  • Alternative 16800 Series

See also

  • Number of Channels 80 ch
  • Maximum Conventional Timing Rate 100 MHz
  • Maximum Transitional Timing Rate 100 MHz
  • Maximum Glitch Timing Rate 50 MHz
  • Memory Depth/Channel-Normal 1 KB
  • Channel to Channel Delay 4 ns
  • Minimum Recognizable Glitch Width 5 ns
  • Setup/Hold Time 10 ns
  • No of Scope channels - 2
  • Bandwidth - 100 MHz
  • Simultaneous max.sampling rate/Ch - 400 MSa/s
  • HPIB,RS-232C
  • FDD
