Showing Results for Keysight Technologies (Agilent HP) 8347A

7 results found for Agilent hp 8347a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8347A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $975 to $800 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

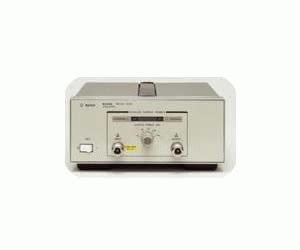

Keysight Technologies (Agilent HP) 8347A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Supported until Jul-2008

The Agilent 8347A is a general-purpose broadband instrumentation amplifier capable of providing gain and power to overcome systematic RF losses, drive high-power devices and improve measurement system performance. The Agilent 8347A can be used to increase low-level sweep speed in increased dynamic range measurements using a network analyzer.

  • 100 kHz to 3 GHz frequency range
  • Up to 20 dBm output power
  • Reduced systematic power losses for increased dynamic range
  • High power drive signals for increased dynamic range
  • Noise figure
    • 10 MHz to 3 GHz: 15 dB
    • Below 10 MHz: 20 dB
  • Output power for 1 dB gain compression +22 dBm
  • Third-order intercept: +30 dBm
  • Maximum input for minimum internally leveled output: -14 dBm
