Ophir RF 5016A (Linear Power RF Amplifiers) Main Features and Specifications

Product Specs

  • Rated Power Output 25W
  • Frequency Range - Low 800 MHz
  • Frequency Range - High 2 GHz
  • Output&nbsp;P1dB<br>Compression 20 watts
  • Gain 44dB
  • Status -

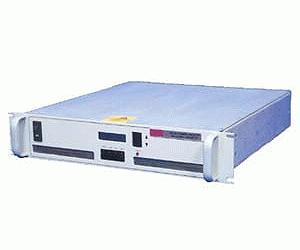

The Ophir  5016A is a 25 Watt broadband amplifier that covers the 0.8 – 2.0 GHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range.

  • Frequency Range 0.8 – 2.0 GHz
  • Saturated Output Power 25 Watts typical
  • Power Output @ 1dB Comp. 20 Watts min
  • Small Signal Gain +44 dB min
  • Small Signal Gain Flatness + 1.5 dB max
  • IP3 +53 dBm typical 7 Input VSWR 2:1 max
  • Harmonics -20 dBc typical @ 20 Watts
  • Spurious Signals > -60 dBc typical @ 20 Watts
  • Input/Output Impedance 50 Ohms nominal
