Description of Keysight Technologies (Agilent HP) 778D

Categories: Coaxial Hardware, Coaxial Directional Couplers

Manufacturer: Keysight Technologies (Agilent HP)

Model: 778D

Condition: Used

Seller: Liberty Test Equipment, Inc.

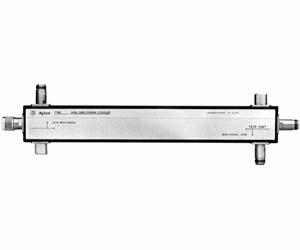

Keysight 778D Dual-directional coupler, 0.10-2.0 GHz

Product specifications of Keysight Technologies (Agilent HP) 778D (From Used-Line T&M Specifications)

The Agilent 778D is an economical dual-directional coupler designed for swept measurements in the 100 MHz to 2 GHz range. Its high directivity and mean coupling accuracy of ±0.5 dB makes the Agilent 778D ideal for reflectometer applications. The auxiliary arms track very closely, making this coupler particularly useful for reflectometers driven by sweep oscillators.

  • Nominal Coupling and Variation: 20 ±1.0 dB
  • Directivity: >36dB to 1 GHz, 32 dB to 2 GHz
  • Maximum SWR: 1.1
  • Insertion Loss: <0.60 dB
  • Reflection coefficient measurement: Over 4 octaves with 1 coupler
  • Power Rating Average, Peak: 50 W, 500 W
  • Tracking: Auxiliary outputs typically track within 0.7 dB
  • Connectors: Choice of mainline connectors; auxiliary arms have type-N female connectors, All type-N connectors stainless steel, compatible with MIL-C-39012 and MIL-C-71
  • Simultaneous reflection and transmission measurements
  • High power capability makes the coupler suitable for permanent installation in coaxial systems to monitor power travelling in both directions simultaneously
