Model year : 2017

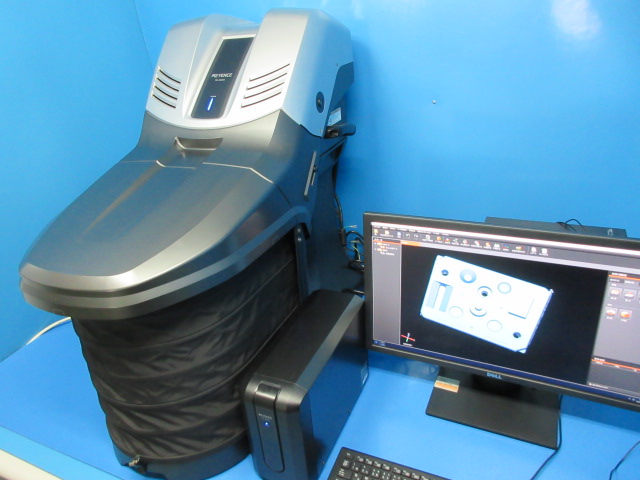

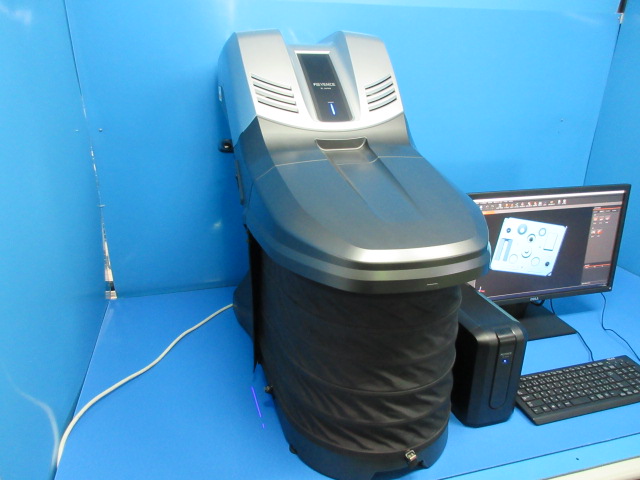

Configuration : VL-300 for controller, VL-320 for test section, VL-310 for table, PC, type 23 LCD and calibration board
Measuring range : φ300mm×H200mm for low magnification, φ70×H50mm for high magnification
Displayed resolution : 0.1μm
Repeat accuracy : 2μm (conditioned)
Measurement accuracy : ±10μm
Image sensor elements : type 1 4M pixels monochrome C-MOS image sensor
Illumination : ornamental 3 colors LED(R,G,B,), blue LED
Zooming : 0.1~8×

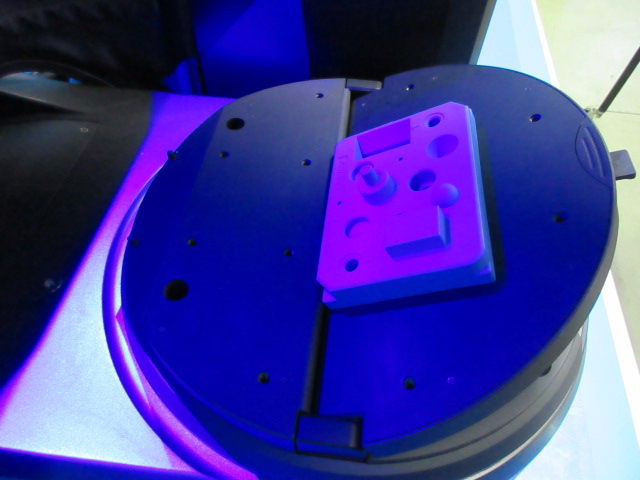

Table : 360° revolved (unlimited), by 45° tilted, 10kg for withstanding load
Measurement : measured in 3D, conparative measured in 3D, conparative sectional measurement, normal sectional measurement, plain positioned measurement, geometric tolerance, compared in 3D/2D, connecting and compositing date
Output files : png、.jpg、.tif、.asc、.stl、.csv
Main body external dimension : W450 × D850 × H800mm
Main body weight : approx. 47kg
