Agilent HP 8562B

90 Visitors viewed Test Equipment Experts ads in the last 30 Days

Send Request
Agilent HP 8562B

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Agilent HP 8562B

Categories: Analyzers Spectrum, Portable Spectrum Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: 8562B

Condition: Used

Seller: Test Equipment Experts

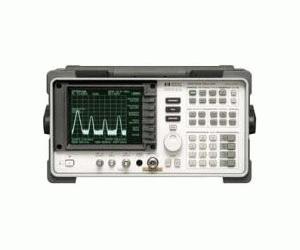

HP/Agilent/Keysight 8562B 9kHz - 22GHz Spectrum Analyzer

Product specifications of Agilent HP 8562B (From Used-Line T&M Specifications)

  • Launch Date
  • Low end frequency limit 9 kHz
  • High End Frequency Limit 22 GHz
  • Resolution Bandwidth Min. 100Hz
  • Resolution Bandwidth Max. 1 MHz
  • See also 8561A
  • Status Discontinued by Manufacturer

The range of the 8562B can be extended to 325GHz with external mixers. The  8562B is ruggedized to military specifications and can survive harsh field conditions. The 8562B can perform a wide variety of jobs from communication-system and component testing to radar and millimeter measurements.

  • Frequency range 9 KHz - 22 GHz
  • Minimum Span 2.5 kHz
  • Maximum Span 19.25 GHz
  • Minimum Sweep Time 50 ms
  • Maximum Sweep Time 100 s
  • Minimum Resolution Bandwidth 100 Hz
  • Maximum Resolution Bandwidth 1 MHz
  • Resolution Bandwidth Steps 1/3/10
  • Minimum Video Bandwidth 1 Hz
  • Maximum Video Bandwidth 3 MHz
  • Video Bandwidth Steps 1/3/10
  • Minimum Single-Side-Band Noise -100 dBc/Hz
  • Maximum Single-Side-Band Noise -86 dBc/Hz
  • Maximum Safe AC Input 1 dBm
  • Maximum DC Input 0 V
  • Minimum Displayed Average Noise -121 dBm
  • Maximum Displayed Average Noise -90 dBm
  • Maximum Dynamic Range 118 dB
  • Maximum Amplitude Uncertainty 3 %
  • Trigger Source External,Internal
  • Demodulation AM, FM
