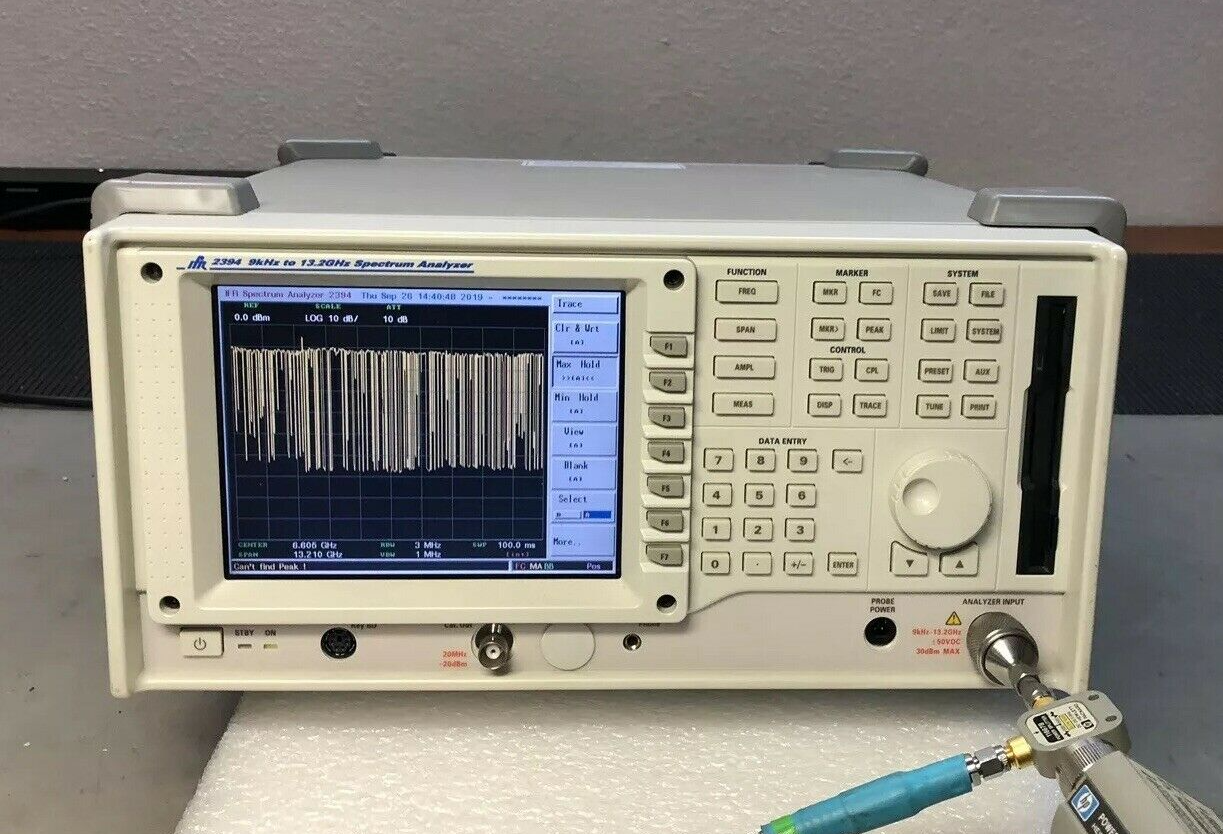

IFR / Aeroflex 2394 9 kHz to 13.2 GHz Spectrum Analyzer - CALIBRATED!

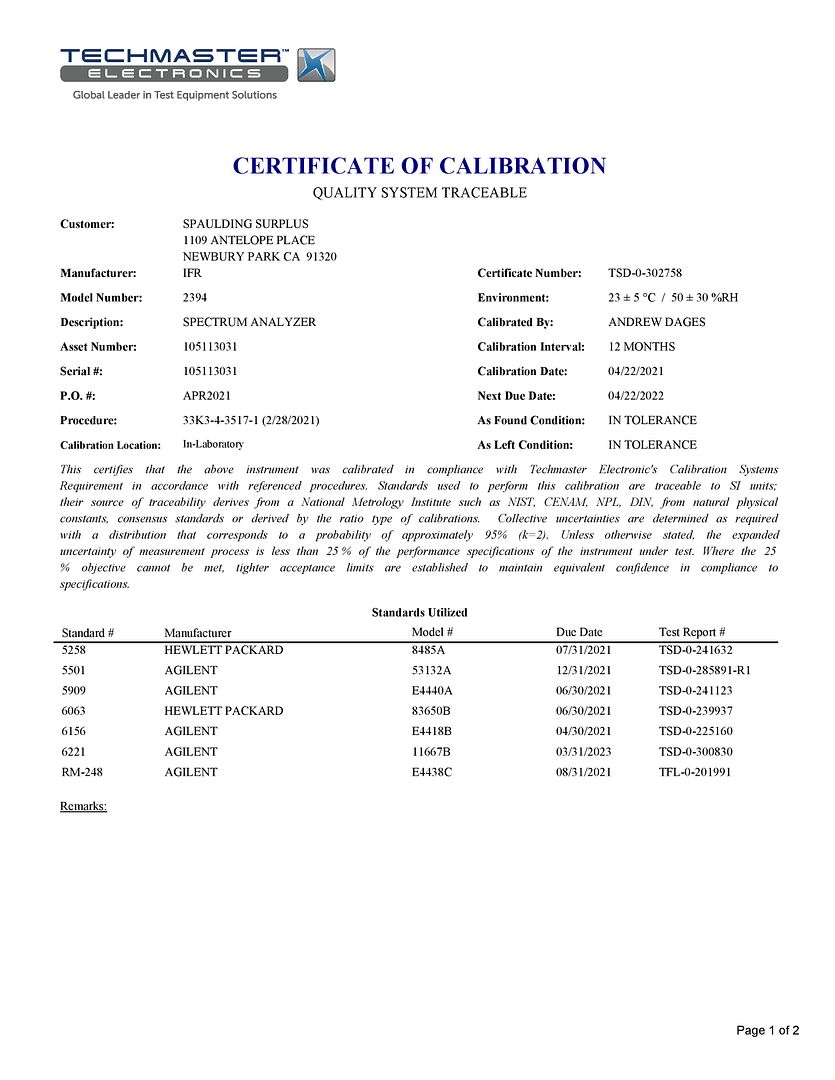

You are bidding on an IFR / Aeroflex 2394 9 kHz to 13.2 GHz Spectrum Analyzer. It will arrive with a fresh calibration performed by an ISO 17025 accredited lab.
The 2394 is the latest in the range of spectrum
analyzers from IFR providing exceptional performance at an exceptional price.
Frequency Accuracy
The local oscillator system in the 2394 is fully synthesized thus providing accurate frequency measurements with 1 Hz resolution.
Portability with a weight of only 26 pounds the 2394 is one of the
lightest microwave spectrum analyzers available. A
truly portable unit.

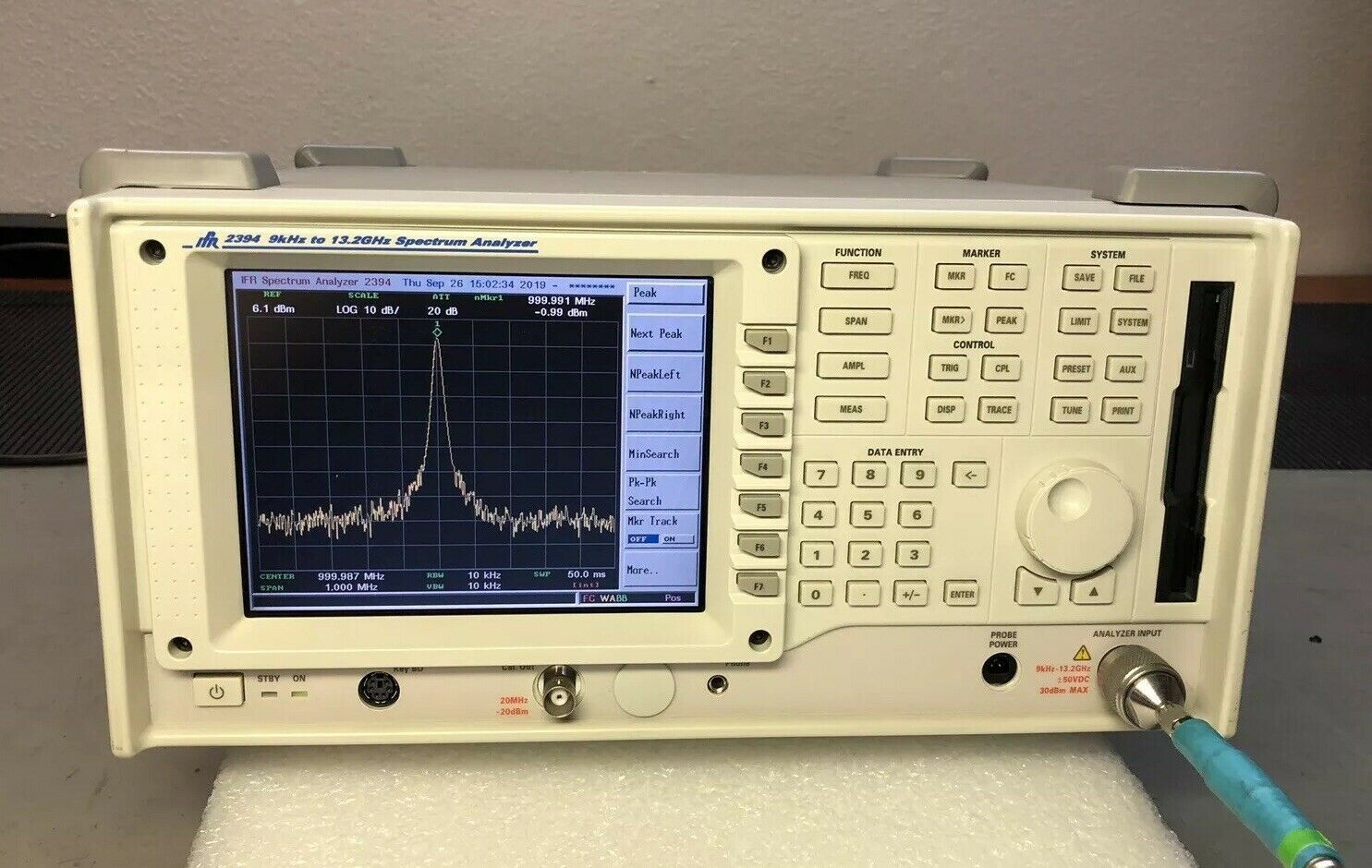

Comprehensive Marker System:
The marker system allows up to a maximum of 9 markers to be displayed on the screen at any one time. A marker table shows the frequency and level of each marker selected thus allowing multiple signals to be evaluated simultaneously. In addition to the Normal markers 2394 provides Delta, Peak Search, Peak Track, 1/Delta, Marker
Track, Marker to Center and Marker to Reference capabilities.
Measurement Limits:
The Limits facility allows an Upper and/or a Lower Limit to be set
on the screen of the 2394. Should the signal being displayed fall outside either limit a message will appear on the screen showing which
limit has been exceeded and how many times this has happened.
Wide Signal Measurement Range:
The 50 Ohm input on the 2394 can accept signals between +30 dBm
and -110 dBm while providing protection to ±50 VDC.

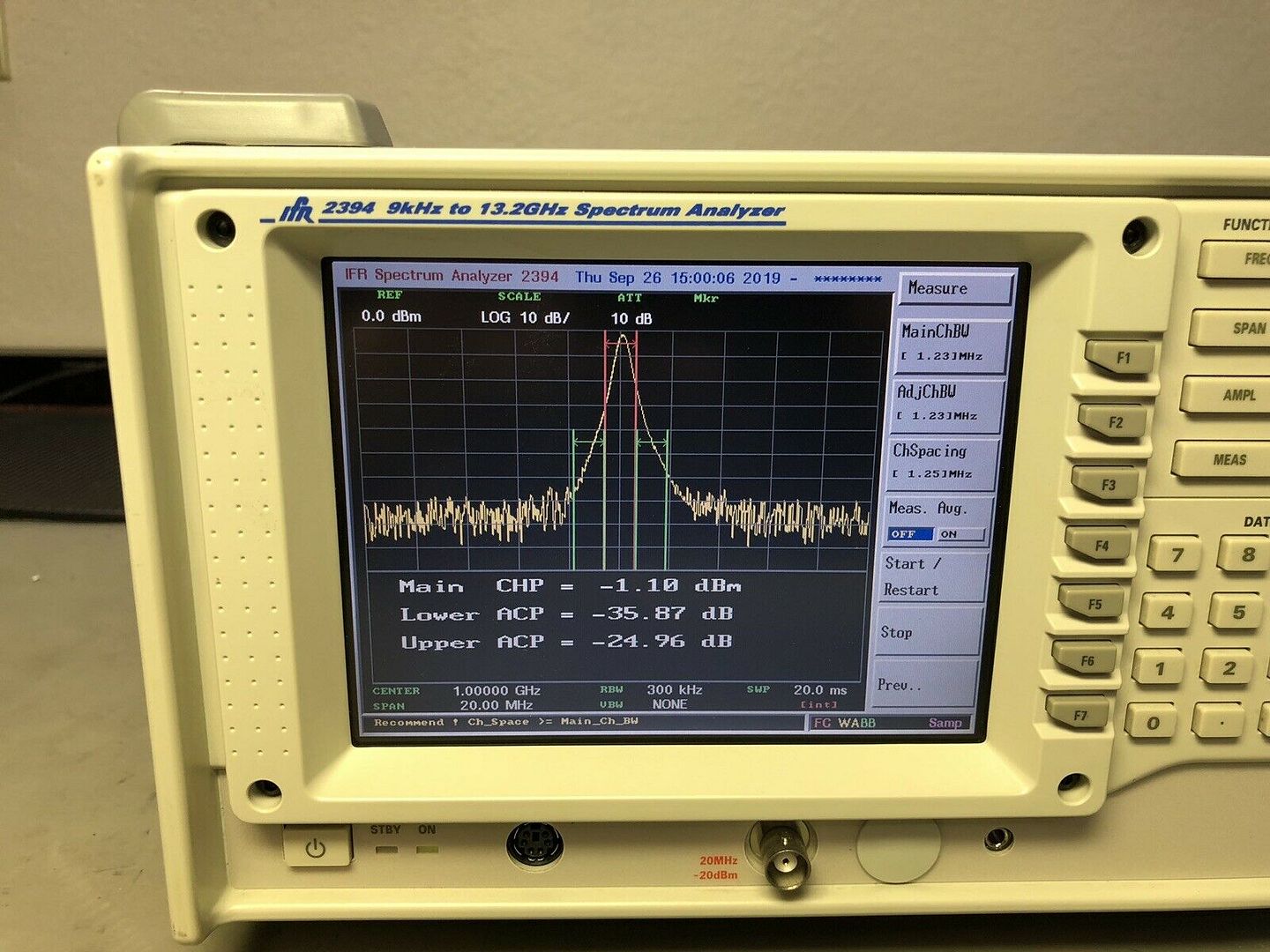

Semi-Automated Measurements:
The MMI on the 2394 has been designed to simplify many of the
measurements required for the evaluation of today’s sophisticated
communications systems. These include Adjacent Channel Power, X
dB Down, Occupied Bandwidth, Channel Power, Harmonic
Distortion.
Tune Function:
Use of this function allows an unknown signal to be quickly captured
and displayed on the screen. The 2394 will search its complete frequency range for the highest level signal, capture it, display it in the
center of the screen with both the span and resolution bandwidths
being automatically set to the optimal state for best viewing.
Spectral Purity:
The phase noise on 2394 is specified at -90 dBc at 10 kHz offset
which allows its use for evaluating the spectral purity and noise performance of systems and sub-systems.
Signal Demodulation:
Demodulation of both AM and FM signals allows full testing on a
wide range of communications systems. The demodulated signal can
be viewed on the screen and is also available on the internal loudspeaker and on headphones via a connector on the front panel. The
FM peak deviation and AM modulation depth can be measured using
the markers provided in the 2394.
Information Storage:
The 2394 is provided with the capability of internally storing up to
1,000 screen traces and 2,000 operational states. The spectrum analyzer is also fitted with a 3.5 inch FDD for bulk storage
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
