Description of Agilent HP E7402A

Categories: Analyzers Spectrum, Agilent Spectrum Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: E7402A

Condition: Used

Seller: Test Equipment Experts

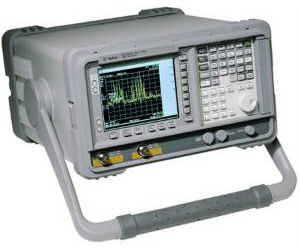

HP/Agilent/Keysight E7402A 9KHz-3GHz EMC Spectrum Analyzer

Product specifications of Agilent HP E7402A (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative N6141A EMC measurement application with N9030A, N9020A, or N9010A; W6141A EMC measurement application with N9000A.
  • Low end frequency limit 100Hz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range DANL to maximum safe input level.
  • Status Discontinued by Manufacturer

The E7402A EMC standard analyzer provides the capabilities you need in an analyzer to make in-house EMI precompliance testing a reality.

The EMC standard analyzer offers you the best value with more productivity options built-in, and guarantees the fast delivery.

 Radiated emissions When combined with a broadband antenna, the E7402A provides the capabilities to check for radiated emissions coming from your DUT. This is best done in an area that is free from reflective objects such as an open area or EMI chamber.

Conducted emissions Test for noise or interference placed on power or data lines by coupling the E7402A instrument to the power or data line through a line impedance stabilization network (LISN) device or absorbing clamp.

Diagnostics and problem isolation If you have an emissions problem, you can use the E7402A with an 11940A or 11941A close field probe to isolate and diagnose the source of the problem.

The E7402A can be purchased separately or as part of the 84115EM Precompliance System.

  • Automatic EMI measurements
  • Compatible with the E7415A software
  • Also compatible with the Benchlink Web Remote software
  • Log sweep
  • 3.5" disk drive
  • 5 minute warm-up
  • Built-in preamplifier
  • Optional tracking generator
  • Rugged, portable design
  • SCPI programming and IVI COM driver support
