HP 66311D

Send Request
HP 66311D
  • $249

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of HP 66311D

Categories: Power Supplies, DC Sources

Manufacturer: Keysight Technologies (Agilent HP)

Model: 66311D

Condition: Used

Seller: Silicon Valley Test & Measurement

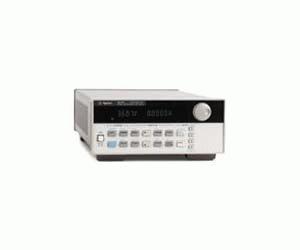

HP 66311D Mobile Communications dc Source with DVM 15V, 3A

Description

Tested at full power. Fully guaranteed.
This instrument can be delivered with a fresh Guaranteed Pass calibration at additional cost. Please inquire if interested.

We offer a 5-day right of refusal as well as 90-day warranty against defects. Complete terms can be found here.

OEM Description

The 66311D mobile communications DC source provides high throughput, exceptional sourcing, and precision measurement. This product is specially designed for testing digital wireless communications products. The 66311D offers a new capability to automatically detect open sense connections. The 66311D mobile communications DC source offers all the same features as the 66311B with the addition of a built in digital voltmeter.
Please note:  Any test equipment depicted other than that listed below is for demonstration purposes and is not included in the sale.

What’s In The Box

  • One HP 66311D (no accessories)

Product specifications of HP 66311D (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative 66321D Mobile Comm DC Source w/ Battery Emulation, DVM
  • Status Discontinued by Manufacturer

The Agilent 66311D mobile communications DC source provides high throughput, exceptional sourcing, and precision measurement. This product is specially designed for testing digital wireless communications products. The 66311D offers a new capability to automatically detect open sense connections. The 66311D mobile communications DC source offers all the same features as the 66311B with the addition of a built in digital voltmeter with input terminals located on the rear panel. This provides limited, low voltage dc and ac measurement capability, which can be used to monitor test point voltages on the unit under test as well as on the test fixture. The common mode voltage range is from −4.5 Vdc to +25 Vdc relative to the minus terminal of output 1. The DVM is programmable from the front panel of the instrument as well as remotely using SCPI programming commands.

  • Voltage and current control with 12-bit programming resolution on output 1, and 3 ampere current source capability (up to 5 amperes for 7 milliseconds)
  • Extensive measurement capability on output 1
    • dc voltage and current
    • rms and peak voltage and current
    • Current measurement capability up to approximately 7.0 amperes
    • 16-bit measurement resolution
    • Triggered acquisition of digitized current and voltage waveforms
  • Output ratings: 0 - 15 V, 0 - 3 A, 5 Apeak
  • Ripple and noise: 1 mVrms, 6 mVp-p, 2 mArms
  • Load regulation: 2 mV, 0.75 mA
  • Line regulation: 0.5 mV, 0.75 mA
  • Transient response time: <35 µs
  • Sink current: -2 A at 7.5 V
  • Drift: 0.01% + 1 mV, 0.01% + 30 µA
  • Output voltage rise/fall time: <200 µs
  • Measurement time: 50 ms average
  • Command processing time: 4 ms average
  • Front panel control with 14-character vacuum fluorescent display, keypad, and rotary control for voltage and current settings
  • Built-in GPIB interface programming with SCPI command language
  • Non-volatile state storage and recall with SCPI command language
  • Over-voltage, over-current, over-temperature, and RI/DFI protection features
  • Extensive selftest, status reporting, and software calibration
  • DVM
    • DC readback accuracy: 0.04% + 5 mV
    • Common mode voltage range: -4.5 Vpeak to +25 Vpeak
    • Maximum DC differential voltage: ±25 Vpeak
    • Maximum AC differential voltage: 10 Vrms
    • Maximum continuous input capability without damage: 50 V
    • Input resistance: 20 MΩ
    • Input capacitance: <60 pF
    • DC common mode rejection ratio: >83 dB
