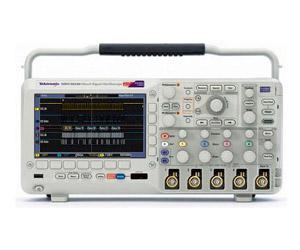

Tektronix MSO2014B

138 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series provides advanced debug features at an entry-level price. With as many as 20 channels (MSO Series), you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, FilterVu™ low-pass filter and innovative Wave Inspector® controls, and the MSO/DPO2000B Series provides the feature-rich tools you need to simplify and speed up debug of your complex design. All backed by a 5-year warranty.

• 200, 100, 70 MHz Bandwidth Models
• 2 and 4 Analog Channel Models
• 16 Digital Channels (MSO Series)
• 1 GS/s Sample Rate on All Channels
• 1 Megapoint Record Length on All Channels
• 5,000 wfm/s Maximum Waveform Capture Rate
• Suite of Advanced Triggers
• Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
• FilterVu™ Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
• 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
• TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
• 7 inch (180 mm) Widescreen TFT-LCD Color Display
• Small Footprint and Lightweight – Only 5.3 inches (134 mm) deep and 7 lb 14 oz (3.6 kg)
• USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
• USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
• Optional 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
• Optional Automated Serial Triggering, Decode, and Search Options for I²C, SPI, CAN, LIN, and RS-232/422/485/UART
• Automated Triggering, Decode, and Search on Parallel Buses (MSO Series)
• Multichannel Setup and Hold Triggering (MSO Series)
• Five-year warranty

MSO2014B characteristics:

• Vertical system analog channels
  • Input channels: 4
  • Analog bandwidth (-3 dB): 100 MHz
  • Calculated rise time: 3.5 ns
  • Hardware bandwidth limits: 20 MHz
  • Input coupling: AC, DC, GND
  • Imput impedance: 1 MΩ ±2%, 11.5 pF ±2 pF
  • Vertical resolution: 8 bits
  • Maximum input voltage, 1 MΩ: 300 V_rms with peaks ≤ ±450 V
• Horizontal system analog channels
  • Maximum sample rate (all channels): 1 GS/s
  • Maximum record length (all channels): 1 Mpoints
  • Maximum duration of time captured at highest sample rate (all channels): 1 ms
  • Time-base range: 4 ns/div to 100 s/div
  • Channel-to-channel deskew range: ±100 ns
• Vertical system digital channels
  • Input channels: 16
  • Threshold selections: TTL, CMOS, ECL, PECL, User Defined
  • User-defined Threshold Range: ±20 V
  • Maximum Input Voltage: ±40 V
  • Maximum Input Dynamic Range: 80 Vpk-pk (threshold setting dependent)
  • Minimum Voltage Swing: 500 mVpk-pk
  • Input Impedance: 101 kΩ
  • Probe Loading: 8 pF
  • Vertical Resolution: 1 bit
• Horizontal system digital channels
  • Maximum Sample Rate (when using any of channels D7-D0): 1 GS/s (1 ns resolution)
  • Maximum Sample Rate (when using any of channels D15-D8): 500 MS/s (2 ns resolution)
  • Maximum Record Length (all channels): 1 Mpoints
  • Minimum Detectable Pulse Width: 5 ns
  • Channel-to-Channel Skew: 2 ns typical
• Trigger system
  • Main Trigger Modes: Auto, Normal, and Single
  • Trigger Holdoff Range: 20 ns to 8 s
  • Trigger modes: Edge, Pulse width, Runt, Logic, Setup and hold, Rise/Fall time, Video, Parallel
  • Optional trigger modes: I²C, SPI, CAN, RS-232/422/485/UART, LIN
• Acquisition modes: Sample, Peak detect, Averaging, Roll
• Waveform measurements: Cursors (Waveform and screen), 29 automatic measurements, Gating
• Waveform math
  • Arithmetic: Add, subtract, and multiply waveforms
  • FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris
• Display: 7 inch (180 mm) liquid crystal TFT color display, 480 x 234 pixels (WQVGA)
• Input/output ports: USB 2.0 high-speed device and host ports, LAN port, Video Out port, Auxiliary input, Probe compensator output
