Description of Tektronix MDO3104

Categories: Oscilloscopes, Mixed Signal Oscilloscopes

Manufacturer: Tektronix

Model: MDO3104

Condition: Used

Seller: TRS-RenTelco

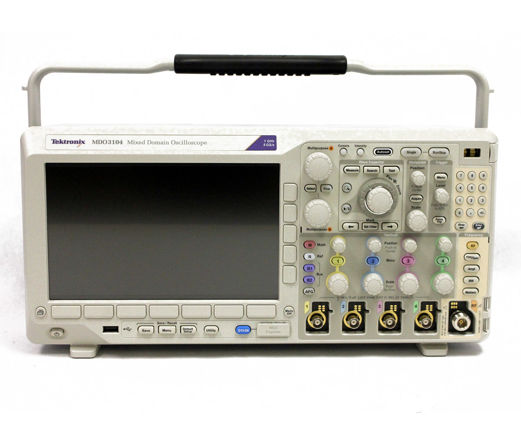

Tektronix MDO3104

The Tektronix MDO3104 Mixed Domain Oscilloscope is part of the Tektronix MDO3000 series. The device is well-equipped with many tools, which allow for its use in various testing applications. The device can be used as a spectrum analyzer as well as an oscilloscope and can also be upgraded to add further capabilities. Whether you need this device for testing or measuring signals, signal processing or for monitoring systems, it handles each of these tasks competently.

Key Specifications of the Tektronix MDO3104 include:

  • Bandwidth: 1 GHz
  • Sampling Rate: 5 GS/sec.
  • Scope Channels: 4
  • Digital Channels: 16
  • Display Memory Depth: 10 Mpts
  • Acquisition Rate: 250,000 waveforms/sec.

TRS-RenTelco offers the Tektronix MDO3104 Mixed Domain Oscilloscope for rent or lease with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.

Product specifications of Tektronix MDO3104 (From Used-Line T&M Specifications)

Today's integrated designs need an oscilloscope that is just as integrated - such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now - or later.

MDO3104 specifications:

  • Analog channels: 4
  • Analog channel bandwidth: 1 GHz
  • Rise time (typical, calculated): 400 ps
  • Sample rate: 2.5 GS/s
  • Record length: 10 M
  • Digital channels with MDO3MSO option: 16
  • 1 RF channel: 9 kHz - 1 GHz (up to 3 GHz optional)
  • Arbitrary Function Generator outputs with MDO3AFG option: 1
  • Spectrum analyzer channels: 1
  • Standard spectrum analyzer frequency range: 9 kHz - 1 GHz
  • Optional spectrum analyzer frequency range with MDO3SA option: 9 kHz - 3 GHz
  • Vertical system analog channels:
    • Hardware bandwidth limits: 20 MHz or 250 MHz
    • Input coupling: AC, DC
    • Vertical resolution: 8 bits (11 bits with Hi Res)
  • Vertical system digital channels (with MDO3MSO option)
    • Input channels: 16 digital
    • Threshold selections: TTL, CMOS, ECL, PECL, User-defined
    • User-defined threshold range:  -15 V to +25 V
    • Maximum input voltage:  -20 V to +30 V
    • Minimum voltage swing: 500 mV
    • Input resistance: 101 kΩ
    • Probe loading: 8 pF
    • Vertical resolution: 1 bit
  • Horizontal system analog channels
    • Time base range: 400 ps/div to 1000 s/div
    • Maximum duration at highest sample rate (all/half channels): 4/2 ms
    • Channel-to-channel deskew range: ±125 ns
  • Horizontal system digital channels (with MDO3MSO option)
    • Maximum sample rate (Main): 500 MS/s (2 ns resolution)
    • Maximum record length (Main): 10 M
    • Maximum sample rate (MagniVu): 8.25 GS/s (121.2 ps resolution)
    • Maximum record length (MagniVu): 10k centered on the trigger
    • Minimum detectable pulse width (typical): 2 ns
    • Channel-to-channel skew (typical): 500 ps
