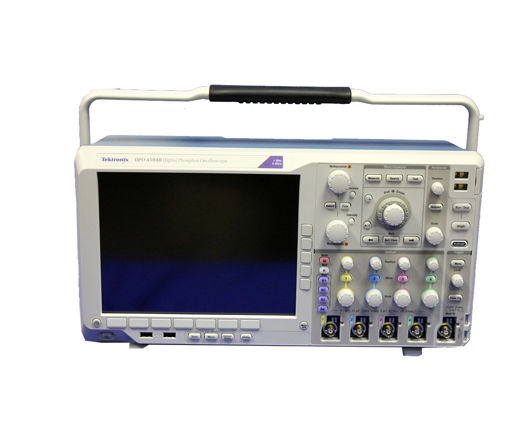

Tektronix DPO4104B

The Tektronix DPO4104B is 4 Ch. 1 GHz Digital Oscilloscope that forms a part of the brand's MSO/DPO4000B series of mixed signal oscilloscopes.

With the MSO/DPO4000B Mixed Signal Oscilloscope Series, you can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and up to 5X oversampling on all channels ensure you have the performance you need to see fast-changing signal details.

To capture long windows of signal activity while maintaining fine timing resolution, the MSO/DPO4000B Series offers deep record length of up to 20M points standard on all channels. And with Wave Inspector controls for rapid waveform navigation, automated serial and parallel bus analysis, limit and mask testing, and automated power analysis, your Tektronix oscilloscope provides the feature-rich tools you need to simplify and speed debug of your complex design.

The Tektronix DPO4104B is available for rent and lease at TRS-RenTelco with 365 days customer service. Request a quote today.

Product specifications of Tektronix DPO4104B (From Used-Line T&M Specifications)

The MSO/DPO4000B Series offers a robust set of features to speed every stage of debugging your design – from quickly discovering an anomaly and capturing it, to searching your waveform record for the event and analyzing its characteristics and the behavior of your device.

Offering up to 1 GHz bandwidth and 5 GS/s sample rate, the MSO/DPO4000B delivers the performance you need to see fast-changing signal details. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, and the MSO/DPO4000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

  • 1 GHz, 500 MHz, 350 MHz Bandwidth Models
  • 4 Analog Channel Models
  • 16 Digital Channels (MSO Series)
  • Up to 5 GS/s Sample Rate on All Channels
  • 20 Megapoint Record Length on All Channels
  • >50,000 wfm/s Maximum Waveform Capture Rate
  • Standard Passive Voltage Probes with Less than 4 pF Capacitive Loading and 500 MHz or 1 GHz Analog Bandwidth
  • Suite of Advanced Triggers
  • Wave Inspector® Controls provide Easy Navigation and Automated Search of Waveform Data
  • 41 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 10.4 inches (264 mm) Bright XGA Color Display
  • Small Footprint and Lightweight – Only 5.8 inches (147 mm) deep and 11 lb (5 kg)
  • Two USB 2.0 Host Ports on the Front Panel and Two on the Rear Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Integrated 10/100/1000BASE-T Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
  • Optional Automated Serial Triggering, Decode, and Search Options for I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM

DPO4104B characteristics:

  • Vertical system
    • Input channels: 4
    • Analog bandwidth: 1 GHz
    • Calculated rise time (typical): 350 ps
    • Hardware bandwidth limits: 20 MHz or 250 MHz
    • Input coupling: AC, DC
    • Imput impedance: 1 MΩ ±1%, 50 Ω ±1%
    • Vertical resolution: 8 bits (11 bits with Hi Res)
    • Maximum input voltage, 1 MΩ: 300 Vrms CAT II with peaks ≤ ±425 V
    • Maximum input voltage, 50 Ω: 5 Vrms with peaks < ±20 V
  • Horizontal system
    • Maximum sample rate (all channels): 5 GS/s
    • Maximum record length (all channels): 20 Mpoints
    • Maximum duration at highest sample rate (all channels): 4 ms
    • Time base range: 1 ns to 1000 s
    • Channel-to-channel deskew range: ±125 ns
  • Trigger system
    • Main trigger modes: Auto, Normal, and Single
    • Trigger coupling: DC, AC, HF reject (attenuates >50 kHz), LF reject (attenuates <50 kHz), noise reject (reduces sensitivity)
    • Trigger holdoff range: 20 ns to 8 s
  • Trigger level range
    • Any channel: ±8 divisions from center of screen
    • External (auxiliary input): ±8 V
    • Line: Fixed at about 50% of line voltage
  • Trigger modes: Edge, Sequence (B-trigger), Pulse Width, Timeout, Runt, Logic, Setup and Hold, Rise/Fall Time, Video
  • Optional trigger modes: Extended Video, I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, I2S/LJ/RJ/TDM
  • Acquisition modes
    • Sample: Acquire sampled values
    • Peak Detect: Captures glitches as narrow as 800 ps (1 GHz models) or 1.6 ns (500 MHz and 350 MHz models) at all sweep speeds
    • Averaging: From 2 to 512 waveforms included in average
    • Envelope: Min-Max envelope reflecting Peak Detect data over multiple acquisitions
    • Hi Res: Real-time boxcar averaging reduces random noise and increases vertical resolution
    • Roll: Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div
  • Waveform measurements: Cursors, 29 automatic measurements, statistics measurements, reference levels, gating, waveform histogram
  • Waveform math: Arithmetic, integrate, differentiate, FFT, advanced algebraic expressions
  • Options: Power measurements, limit/mask testing
  • Display
    • Display Type: 10.4 inch (264 mm) liquid-crystal TFT color display
    • Display Resolution: 1,024 horizontal × 768 vertical pixels (XGA)
    • Waveform Styles: Vectors, Dots, Variable Persistence, Infinite Persistence
    • Graticules: Full, Grid, Solid, Cross Hair, Frame, IRE, and mV
    • Format: YT and simultaneous XY/YT
    • Waveform Capture Rate: >50,000 wfm/s maximum
  • Input/output ports
    • USB 2.0 High-speed Host Port: Supports USB mass storage devices, printers and keyboard. Two ports on front and two ports on rear of instrument
    • USB 2.0 Device Port: Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488), and direct printing to all PictBridge-compatible printers
    • LAN Port: RJ-45 connector, supports 10/100/1000 Mb/s
    • XGA Video Port: DB-15 female connector, connect to show the oscilloscope display on an external monitor or projector
    • Auxiliary Input: Front-panel BNC connector. Input Impedance 1 MΩ. Max input 300 Vrms CAT II with peaks ≤ ±425 V
    • Probe Compensator Output: Front-panel pins. Amplitude: 2.5 V. Frequency: 1 kHz
    • Auxiliary Out: Rear-panel BNC connector. Vout (Hi): ≥2.5 V open circuit, ≥1.0 V 50 Ω to ground. Vout (Lo): ≤0.7 V into a load of ≤4 mA; ≤0.25 V 50 Ω to ground. Output can be configured to provide a pulse out signal when the oscilloscope triggers, the internal oscilloscope reference clock out, or an event out for limit/mask testing
    • External Reference In: Time-base system can phase lock to an external 10 MHz reference (10 MHz ±1%)
    • Kensington Lock: Rear-panel security slot connects to standard Kensington lock
    • VESA Mount: Standard (MIS-D 100) 100 mm VESA mounting points on rear of instrument
  • Lan eXtensions for Instrumentation (LXI): LXI Class C, V1.3
