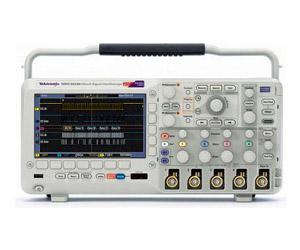

Tektronix DPO2024B 200 MHz, 1 GS/s, 1M record length, 4-channel digital phosphor oscilloscope

Product specifications of Tektronix DPO2024B (From Used-Line T&M Specifications)

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series provides advanced debug features at an entry-level price. With as many as 20 channels (MSO Series), you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, FilterVu™ low-pass filter and innovative Wave Inspector® controls, and the MSO/DPO2000B Series provides the feature-rich tools you need to simplify and speed up debug of your complex design. All backed by a 5-year warranty.

  • 200, 100, 70 MHz Bandwidth Models
  • 2 and 4 Analog Channel Models
  • 16 Digital Channels (MSO Series)
  • 1 GS/s Sample Rate on All Channels
  • 1 Megapoint Record Length on All Channels
  • 5,000 wfm/s Maximum Waveform Capture Rate
  • Suite of Advanced Triggers
  • Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
  • FilterVu™ Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
  • 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 7 inch (180 mm) Widescreen TFT-LCD Color Display
  • Small Footprint and Lightweight – Only 5.3 inches (134 mm) deep and 7 lb 14 oz (3.6 kg)
  • USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Optional 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
  • Optional Automated Serial Triggering, Decode, and Search Options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART
  • Five-year warranty

DPO2024B characteristics:

  • Vertical system
    • Input channels: 4
    • Analog bandwidth (-3 dB): 200 MHz
    • Calculated rise time: 2.1 ns
    • Hardware bandwidth limits: 20 MHz
    • Input coupling: AC, DC, GND
    • Imput impedance: 1 MΩ ±2%, 11.5 pF ±2 pF
    • Vertical resolution: 8 bits
    • Maximum input voltage, 1 MΩ: 300 Vrms with peaks ≤ ±450 V
  • Horizontal system
    • Maximum sample rate (all channels): 1 GS/s
    • Maximum record length (all channels): 1 Mpoints
    • Maximum duration of time captured at highest sample rate (all channels): 1 ms
    • Time-base range: 2 ns/div to 100 s/div
    • Channel-to-channel deskew range: ±100 ns
  • Trigger system
    • Main Trigger Modes: Auto, Normal, and Single
    • Trigger Holdoff Range: 20 ns to 8 s
    • Trigger modes: Edge, Pulse width, Runt, Logic, Setup and hold, Rise/Fall time, Video
    • Optional trigger modes: I2C, SPI, CAN, RS-232/422/485/UART, LIN
  • Acquisition modes: Sample, Peak detect, Averaging, Roll
  • Waveform measurements: Cursors (Waveform and screen), 29 automatic measurements, Gating
  • Waveform math
    • Arithmetic: Add, subtract, and multiply waveforms
    • FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris
  • Display: 7 inch (180 mm) liquid crystal TFT color display, 480 x 234 pixels (WQVGA)
  • Input/output ports: USB 2.0 high-speed device and host ports, LAN port, Video Out port, Auxiliary input, Probe compensator output
