Keysight Technologies (Agilent HP) Keysight 86100C

Send Request
Keysight Technologies (Agilent HP) Keysight 86100C
Image 2 of Keysight Technologies (Agilent HP) Keysight 86100CImage 3 of Keysight Technologies (Agilent HP) Keysight 86100C
  • $7,500
    $12,000

 Add to request cart
Send to a Friend
Flag of ChinaEquipment Location: China
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) Keysight 86100C

Categories: Oscilloscopes, Digital Oscilloscopes

Manufacturer: Keysight Technologies (Agilent HP)

Model: 86100C

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

Keysight 86100C Infiniium DCA-X Oscilloscope

Digital communications analyser mode:

  • Oscilloscope bandwidth of more than 80 GHz ensures the most accurate waveform measurements possible

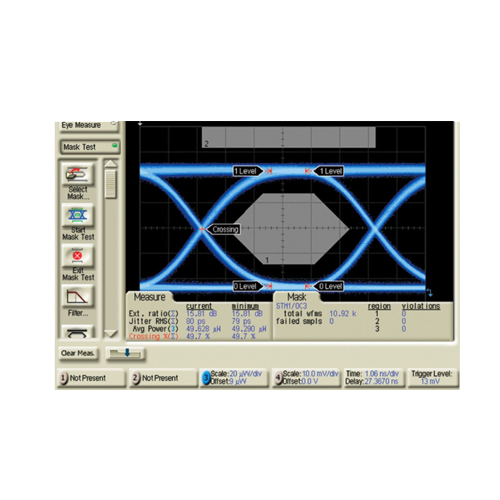

  • Eye diagram analyser for optical and electrical transmitter conformance testing at >40 Gb/s

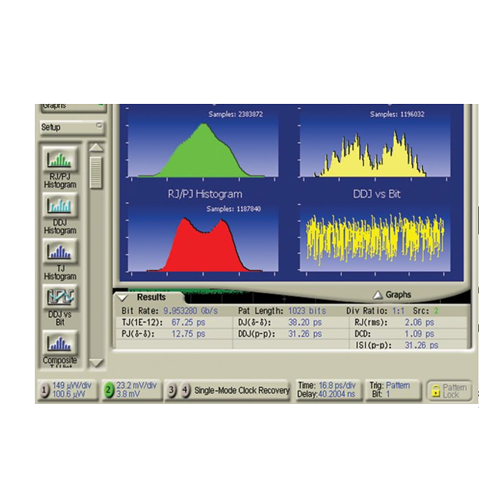

  • Jitter and interference analyser to measure subcomponent jitter and amplitude interference sources
  • Time Domain Reflectometer/Time Domain Transmission (TDR/TDT) for high precision impedance analysis including S-parameters

Key features

  • User-configurable: host slot supports two modules (4 optical or electrical channels)
  • Advanced one-button measurement simplicity
  • Trigger bandwidth greater than 13 GHz (Option 001)
  • Clock recovery function with adjustable loop bandwidth (see 83496B)

Backward compatible:

  • All modules of the 54750A high-bandwidth digital oscilloscope series
  • All modules of the 83480A digital communications analyser series
  • All modules of the 86100A/B Digital Communications Analyser

The 86100C Infiniium DCA-J combines extreme accuracy, repeatability and very simple operating procedures to simplify testing of signals from 50 MHz to 80 GHz. Digital designers can combine the mainframe and modules into four models with industry-leading signal integrity performance

Product specifications of Keysight Technologies (Agilent HP) Keysight 86100C (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative 86100D
  • Bandwidth 80 GHz
  • Channels 4
  • Sample Rate 11.3 GSa/sec
  • Status Discontinued by Manufacturer

A full-function oscilloscope with bandwidth in excess of 80 GHz ensures the most accurate waveform measurements.

  • Combine mainframe and modules into four key instruments with industry leading signal integrity performance:
    • A digital communications analyzer with automated eye diagram analysis for transmitter compliance testing
    • A full-function time domain reflectometer (TDR) for high precision S-parameter impedance analysis
    • A full-function oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements
    • The most accurate jitter analyzer in the industry, measuring subcomponent jitter sources with one-button ease of use
  • Electrical bandwidth from 12 to over 80 GHz ensure the most precise waveforms and pulse fidelity
  • Probing - if connectorized test points are not available, use the award-winning Infiniimax probes to their maximum bandwidth advantage by pairing them with the N1022A probe adapter and the wide bandwidth inputs of the  DCA-J.
  • Pattern Lock enables single-valued waveform viewing at even the fastest bit rates when no separate pattern or frame trigger is available
  • Even closed eyes can be captured as pulse train data and the effectiveness of common equalization schemes are seen from on-board algorithms
