61 Visitors viewed Optical Innovations Inc. ads in the last 30 Days
IN STOCK
Categories: Meters, Multimeters
Manufacturer: Keithley
Model: 2000
Condition: Used
Seller: Optical Innovations Inc.

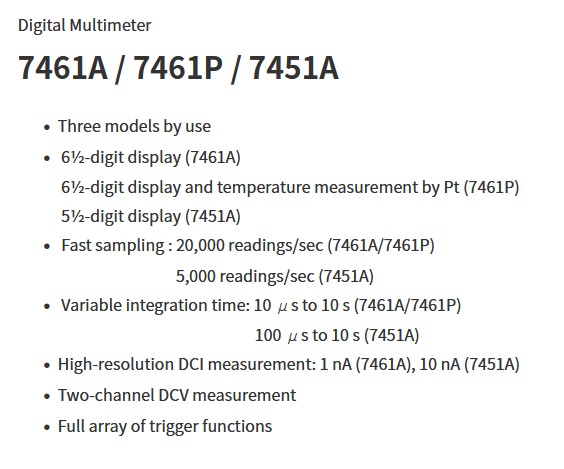

ADCMT 7461A (~ Keithley 2000 ) 6.5 Digit DMM
6 1/2 Digit Digal Display
Fast sampling : 20,000 readings/sec
Variable integration time: 10 μs to 10sec
High-resolution DCI measurement: 1 nA
Two-channel DCV measurement
Full array of trigger functions

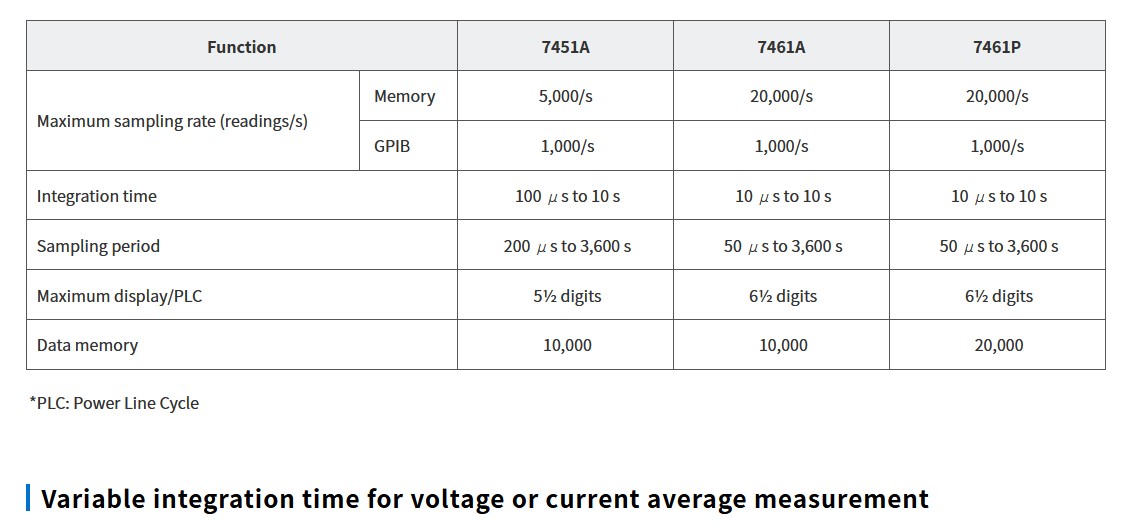

The 7461A multimeter realize high-speed sampling performance with selective sampling modes by adopting the newly developed A/D converter, supporting a variety of applications including digitization of pulse signals, logging measurement at certain intervals. As another feature, the integration time can be set to any values. This enables correctly measuring the average values of pulsed current/voltage. Furthermore, these multimeters are provided with two channel DC voltage measurement (Bch 10 V range fixed), so that low cost measurement system architecture is available.
The 2000 combines broad measurement ranges with superior accuracy specifications - DC voltage from 100nV to 1kV (with 0.002% 90-day basic accuracy) and DC resistance from 100µOhm? to 100MOhm (with 0.008% 90-day basic accuracy). Optional switch cards enable multiplexing up to 20 different input signals for multipoint measurement applications. The 2000 offers exceptional measurement speed at any resolution. At 61/2 digits, it delivers 50 triggered rdgs/s over the IEEE-488 bus. At 41/2 digits, it can read up to 2000 rdgs/s into its internal 1024 reading buffer, making it an excellent choice for applications where throughput is critical.
