Description of Agilent HP 16716A

Categories: Analyzers Logic, State Timing Analysis Modules

Manufacturer: Keysight Technologies (Agilent HP)

Model: 16716A

Condition: Used

Seller: Test Equipment Experts

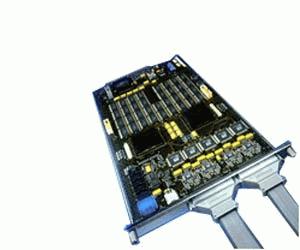

HP/Agilent/Keysight 16716A 68 CH 167MHz state/667 MHz Timing

Product specifications of Agilent HP 16716A (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative 16760A, 16900
  • Instrument Type Module
  • Max. Channels Number 68
  • Max. State Speed 167 MHz
  • Max. Timing Speed 2 GHz
  • Memory Depth 512kb/ch
  • See also 16717A, 16715A
  • Status Discontinued by Manufacturer

The Agilent 16716A, 167 MHz state and 2 GHz timing logic analyzer module, offers high performance state and timing analysis features for your future digital designs.

  • 2 GHz Timing Zoom
  • 512K of acquisition memory is available on each channel to capture the information you need to link the symptom of a problem with the cause.
  • Up to 340, 512K deep channels simultaneously
  • VisiTrigger™ technology combines new trigger functionality with a user interface that is easy to use and understand -- its graphical representation shows you how the trigger condition will be defined.
  • Your most commonly used triggers are just a mouse click away with the built in trigger functions.
  • Both basic and advanced state and timing trigger functions are available.
  • Trigger functions can be combined as building blocks to easily customize a trigger for your specific task.
  • Each step in the sequence contains an "IF-THEN-ELSE" structure that can evaluate up to four logic events.
  • Each event can specify a combination of actions such as: store sample, increment counters, reset timers, trigger, or go to another step in the trigger sequence
