Tektronix 7B53A () Main Features and Specifications

Product Specs

  • Status Discontinued

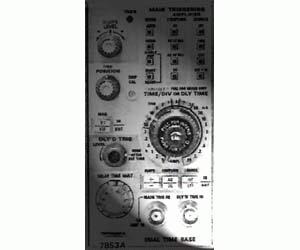

The Tektronix 7B53A is a dual time base for use with the 7000 Series of mainframes. It is particularly recommended for the 7600 Series of mainframes but is compatible with any other mainframes of the 7000 Series, and together with a 7A series amplifier, forms a complete oscilloscope system.

The 7B53A and 7B53AN are electrically identical except that only the 7B53A is compatible with the alphanumeric readout system provided for the 7000 Series oscilloscopes.

  • Delayed/delaying time base in one
  • Fastest rate / div is 5 ns (Achieved with the x10 magnifier)
  • Four types of sweep: normal, intensified delaying, delayed, mixed (Note: the switch buttons are not lit) - Delaying sweep speeds are 50 ns to 5 s/div in 25 steps (calibrated) and at least 2.5 times the calibrated sweep rate, continuously variable between steps (uncalibrated)
  • Can trigger to 100 MHz
  • External horizontal input
  • Fine/coarse controls
  • AUTO MAIN TRIGGERING MODE: A bright base line is displayed in the absence of a trigger signal
  • Works as an amplifier for X-Y operation
  • Option: TV triggering

Get Price Quotes

Tektronix 7B53A Opts: no option
  • €99
