Keysight Technologies (Agilent HP) E6380A () Main Features and Specifications

Product Specs

  • Status Discontinued

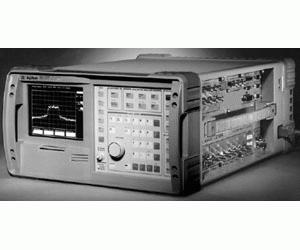

The Agilent 8935 Series E6380A CDMA Cellular/PCS base station test set is the next generation in CDMA base station test equipment. The E6380A is a full featured, one-box test set designed to meet the needs of installation teams, service providers, and network equipment manufacturers. The new “rugged design” includes a reliable membrane keypad, a gasketed display, and filtered airflow to resist dirt and moisture. The enclosure of the unit supports stand up operation, and helps protect itself from bumps and shocks.

Predefined tests let operations managers standardize system maintenance, and technicians of all levels obtain consistent, accurate results with fewer test variability errors. Measurements can be captured to identify trends and proactive steps taken to avoid costly base station down time.

The Agilent E6380A supports cdma2000 and major CDMA networks.

  • Designed for base station test environment
  • Cellular and PCS frequency coverage
  • Frequency ranges
    • CDMA signal generator: 800 MHz to 1000 MHz, and 1.7 GHz to 2.0 GHz (usable 4 to 200 MHz)
    • CDMA analyzer input: 30 MHz to 1000 MHz, and 1.7 to 2.0 GHz
    • Channel power measurement (1.23 MHz) input: 800 MHz to 1000 MHz, and 1.7 to 2.0 GHz
    • Channel power measurement (30 kHz) input: 30 MHz to 1000 MHz, and 1.7 to 2.0 GHz
    • Adjacent channel power: 800 MHz to 1000 MHz and 1.7 GHz to 2.0 GHz
    • Waveform quality measurement: 4 MHz to 1000 MHz, and 1.7 to 2.0 GHz
    • Code domain analyzer: 4 MHz to 1000 MHz, and 1.7 to 2.0 GHz
    • Signal generator (RF): 400 kHz to 1000 MHz, and 1.7 to 2.0 GHz
    • RF analyzer measurements: 400 kHz to 1 GHz, 1.7 to 2.0 GHz
    • RF power measurements: 30 MHz to 1 GHz, 1.7 to 2.0 GHz
    • FM measurement: 5 MHz to 1 GHz (usable to 400 kHz), and 1.7 to 2.0 GHz
    • AM measurement: 10 MHz to 1 GHz (usable to 400 kHz), 1.7 to 2.0 GHz
    • Spectrum analyzer: 400 kHz to 1 GHz, 1.4 to 2.0 GHz
    • Tracking generator: 400 kHz to 1 GHz, 1.7 to 2.0 GHz
    • Oscilloscope: 2 Hz to 50 kHz (3 dB BW)
    • AF analyzer: 20 Hz to 400 kHz
    • SINAD measurement: 300 Hz to 10 kHz, ±5%
    • Audio source: DC to 25 kHz
  • Level ranges
    • CDMA signal generator output: RF IN/OUT –120 dBm to –40 dBm, DUPLEX OUT –120 dBm to –10 dBm
    • CDMA analyzer: 4 mW to 15 W for f >100 MHz (+6 to +42 dBm), 4 mW to 1 W for f <100 MHz (+6 to +30 dBm)
    • Waveform quality measurement input: RF IN/OUT –20 dBm to +42 dBm, ANTENNA –58 dBm to +7 dBm
    • Channel power measurement (1.23 MHz): RF IN/OUT 0.1 μW to 15 W average (–40 to +42 dBm), ANTENNA typically, 16 pW to 1.25 W average (–78 to +4 dBm)
    • Channel power measurement (30 kHz): RF IN/OUT 2.4 nW to 15 W average (–56 to +42 dBm), ANTENNA typically, 0.39 pW to 1.25 W average (–94 to +4 dBm)
    • Adjacent channel power: RF IN/OUT 0.1 μW to 15 W average (–40 to +42 dBm), ANTENNA typically 16 pW to 1.25 W average (–78 to +4 dBm)
    • Code domain analyzer input: RF IN/OUT –20 dBm to +42 dBm, ANTENNA –58 dBm to +7 dBm
    • Signal generator and tracking generator output: RF IN/OUT Connector –137 to –40 dBm into 50 W, DUPLEX OUT Connector –125 to –10 dBm into 50 Ω
    • RF analyzer measurements: RF IN/OUT 1 mW to 100 watts continuous, temperature <40° C, 75 W continuous, for temperatures <55° C; ANT IN –38 dBm to +15 dBm
    • FM measurement input: –6 to +50 dBm at RF IN/OUT, –44 to +12 dBm at ANTENNA IN
    • AM measurement input (levels in PEP): –6 to +52 dBm at RF IN/OUT, –44 to +14 dBm at ANTENNA IN
    • Spectrum analyzer reference: +50 to –50 dBm
    • AC voltage measurement: 0 to 30 Vrms
    • DC voltage measurement: 100 mV to 42 V
    • Distortion measurement input: 30 mV to 30 Vrms
    • SINAD measurement input: 30 mV to 30 Vrms
    • Audio source output: 0.1 mV to 4 Vrms
  • Analog and digital (IS-95B and IS-2000 1XRTT) capabilities
  • Performs key RF, TX and RX measurements
  • cdma2000 measurements illustrate noise levels, data and voice traffic to identify capacity issues
  • Built-in average power meter with ±7.5% accuracy
  • Antenna measurements
  • Waveform quality (rho), frequency error, code domain power, timing, and phase analysis
  • Built-in AWGN source for calibrated Eb /No settings
  • Network equipment manufacturer (NEM) specific automation software to increase measurement repeatability and enhance technician efficiency
  • Firmware upgradeable (via PCMCIA to Flash Memory)
  • Dedicated, one-button user interface keys
  • Remote programming
    • GP-IB: SH1, AH1, T6, L4, SR1, RL1, LE0, TE0, PP0, DC1, DT1, C4, C11, E2
    • RS-232: 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 baud
  • Option 200
    • New code domain power screen displays 128 code channels and supplemental channels
    • New dual I and Q complex code domain power screen clearly shows I Walsh codes and Q Walsh codes on the same display
    • New I/Q constellation diagram screen graphically shows I/Q decision points
    • Noise power display for each code
