Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 83640A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $11995 to $9495 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 83640A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative E8257D PSG Analog Signal Generator

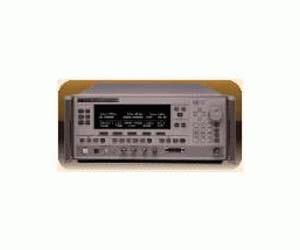

The Agilent 83640A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83640A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.

  • Scan modulation to simulate antenna scan patterns
  • Accurate fixed and swept frequency offset for two-tone measurement
  • User flatness correction for leveling at remote points in the test system
  • General purpose source for use in component test, receiver test and for frequency conversion
  • Frequency range: 10 MHz to 40 GHz
  • Sweep modes: Step, List, Ramp
  • Maximum power: < 26.5 GHz: +10 dBm
  • Maximum power: > 26.5 GHz: +6.0 dBm
  • Power sweep range: -20 dBm to maximum power
  • Phase noise (38 GHz at 10 KHz): -70 dBc
  • Max FM deviation (locked): +/- 8 MHz
