Here you will find a large selection of new and used General Radio 900-MP listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

General Radio 900-MP () Main Features and Specifications

Product Specs

  • Status -

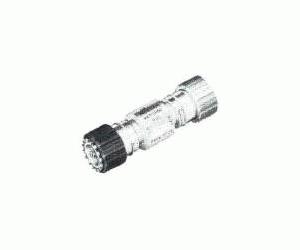

The 900-MP is a 75-ohm to 50-ohm precision matching pad with a two-port minimum loss network to match 50 Ω GR900 equipped devices to similarly equipped 75 Ω devices. It features low SWR, low leakage, and the excellent repeatability inherent in GR900 connectors.

  • Frequency: DC to 1 GHz, usable to 8.5 GHz
  • SWR: Better than 1.003 + 0.003 fGHz for 50 Ω side, 1.01 + 0.012 fGHz for 75 Ω side
  • Electrical
    • Input: 1 W max continuous
    • Insertion loss: 5.72 dB nominal
    • Leakage: >130 dB below signal
