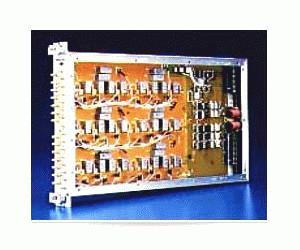

The Racal Instruments™ 1260-54 is a 1.3 GHz multiplexer module. It is ideal for high-performance RF applications. The tree configuration eliminates the effect of unterminated stubs, which would otherwise severely limit bandwidth performance. Unused inputs may be terminated into optional on-board 50 Ω impedances.

The 1260-54 can be used for switching signals to and from oscilloscopes, spectrum, network or distortion analyzers to a unit under test. The module consists of six independent banks of channels configured as 1x4 multiplexers.

Only one connection at a time can be made to each common bus. Unused inputs may be terminated into optional terminators (which must be purchased separately). There is also a fifth, no connect, position for each bank for situations when no signal is required on the common bus.

Relay coil current monitoring is available to provide confidence checking. This gives the user assurance of proper relay operation.

The 1260-54 is controlled by the Option 01 message-based interface.

• Configured as Six 1x4 Tree Multiplexers
• Excellent Crosstalk, Isolation and VSWR Performance for 1.3 GHz
• Low Noise Performance Supports Switching of Low-level RF Signals
• Ideal for VHF/UHF Matrix Building Block
• Optional Termination of Input Signals
