Keysight Technologies (Agilent HP) 44705H () Main Features and Specifications

Product Specs

  • Status Discontinued

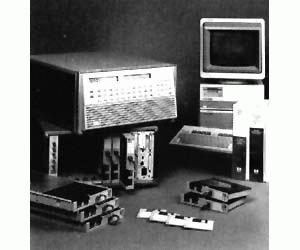

The HP 44705H is an analog signal multiplexer used to switch signals from up to 20 inputs for measurement by model 3852A voltmeter accessories or by external voltmeters. This accessory provides switching capability for up to 20 inputs at scanning speeds up to 250 channels/second using 3852A voltmeters. The accessory can switch signals up to 200 Vdc or 250 Vrms (354 Vpeak).

The 44705H consists of a component module (like the 44705A component module but with high-voltage relays added) and a 20-channel terminal module. Field wiring from user sources, such as voltage sources, is connected to the terminal module, and signals are sent to the switches on the component module. Each channel on the 44705H can be independently configured to allow multiple functions to be measured using the same accessory.

  • Maximum switch rate: 250 ch/s
  • Maximum input voltage: 354 Vpeak or 250 Vdc
  • Maximum input current: 50 mA
  • Maximum input power: 1 VArms/ch
  • Input impedance: >109 Ω
  • Bandwidth: 1.0% flatness at 1 MHz, -3 dB bandwidth at 5 MHz
  • Crosstalk: -35 dB at 100 kHz
  • Maximum offset voltage: 10 µV
  • Maximum bias current: ±1 nAdc
  • Maximum wire size: 16 AWG
