Showing Results for Keysight Technologies (Agilent HP) 44470A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 44470A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $540 to $45 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 44470A () Main Features and Specifications

Product Specs

  • Status -

See also

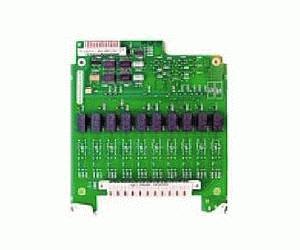

The Agilent 44470A multiplexer module provides ten channels for switching both high and low input signals to a common bus. It can switch signals up to 250V, 2A, and 60W, or 125VA per channel. The 44470A exhibits low thermal offset characteristics, making it ideal for precision low-level signal routing. It can be operated in either a break-before-make mode or in a multiple channels close mode. Make four-wire ohm measurements by programming two Agilent 44470As to open/close in a card pair mode. A screw terminal block is provided for ease of wiring.

  • Maximum current 2A, maximum voltage 250V, maximum power 60W or 125VA
  • 2-wire, latching relays
  • Provisions to add simple attenuators or filter networks
