Showing Results for Keysight Technologies (Agilent HP) 34905A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 34905A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $998 to $199 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 34905A () Main Features and Specifications

Product Specs

  • Status -

See also

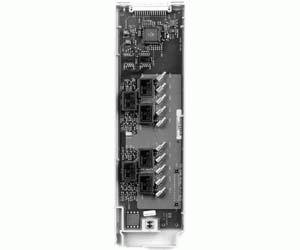

The Agilent 34905A RF multiplexer module for the 34970A Data Acquisition/Switch Unit offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.

The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.

  • Dual 4 Channel RF Multiplexer
  • Common Low (unterminated)
  • 2 GHz bandwidth, 50 Ohm
  • Maximum voltage, current: 42 V, 0.7 A
  • 60 channels/sec speed
  • BNC to SMB adapter cables included
